282834-7

7 位置 2.54 mm 间距 30-16 AWG 欧式接线端子

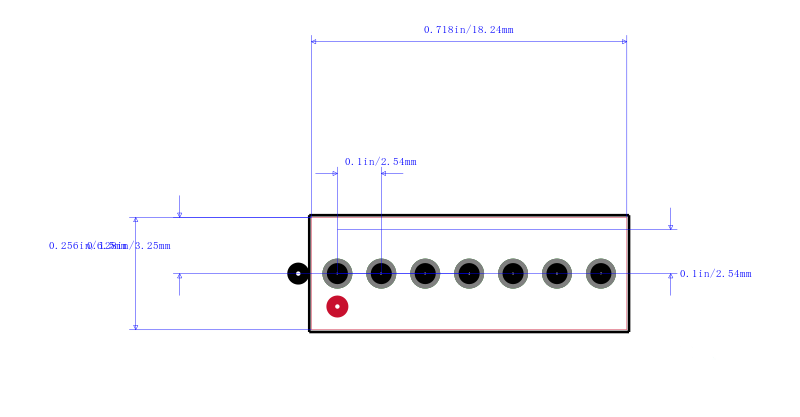

This eurostyle block PCB terminal block manufactured from will connect wires together. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 150 VAC. 282834-7 is housed in polyamide 6/6. This device has a maximum current rating of 10 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 18.24 mm long, 10 mm tall and 6.5 mm deep. It uses the solder termination method.
