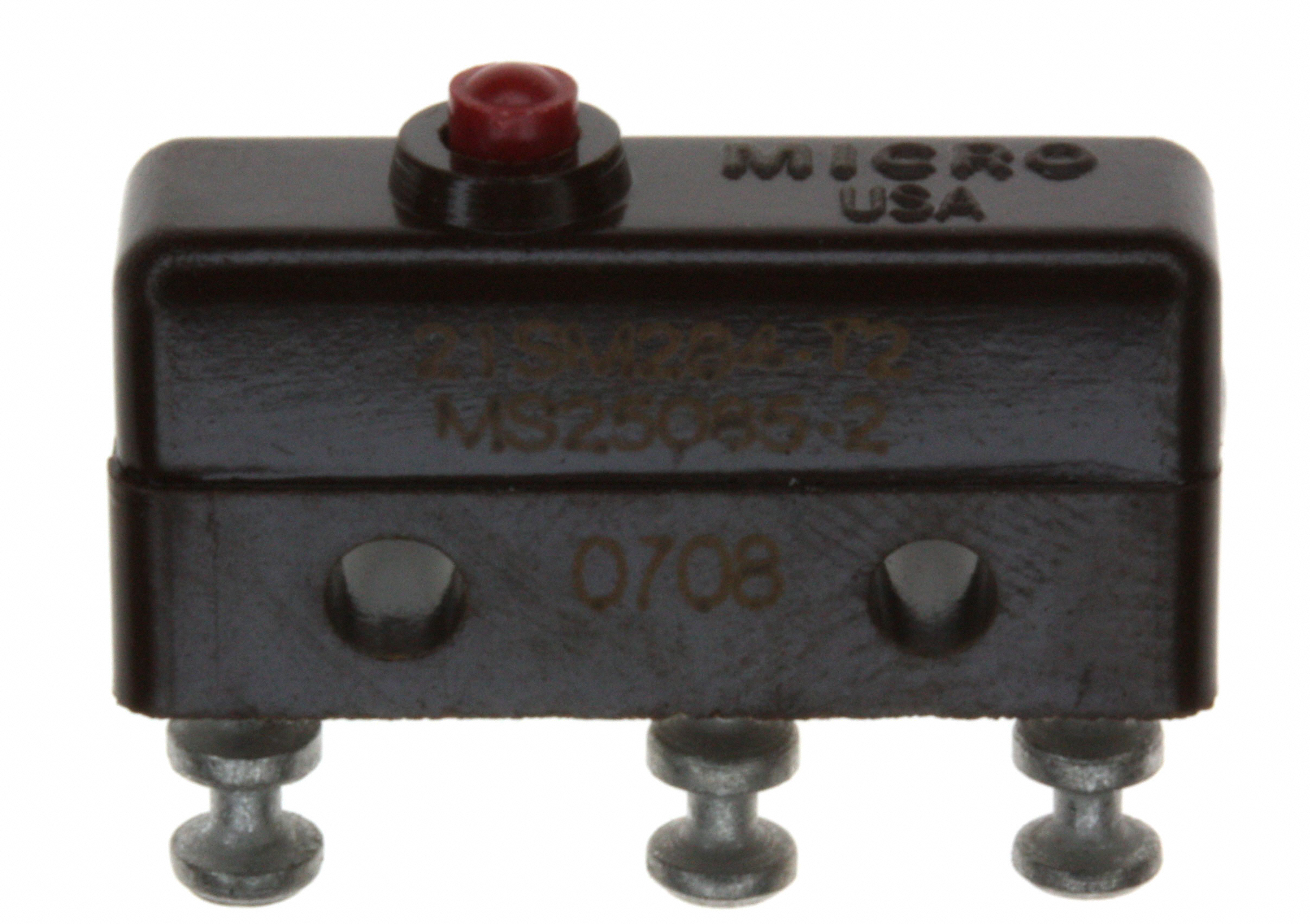

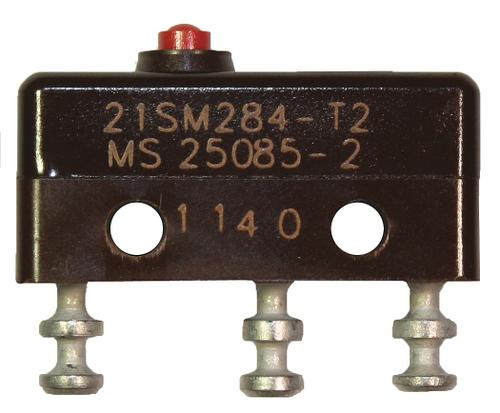

21SM284-T2

互动式目录替换目录页 Interactive Catalog Replaces Catalog Pages

Switch Snap Action N.O./N.C. SPDT Plunger Solder 5A 115VAC 30VDC 1.39N Screw Mount

Product Highlights

Long operating life

Elongated mounting hole for easier, more accurate mounting

Choice of actuation plunger, as well as a variety of integral and auxiliary actuators

Choice of electrical termination solder, quick connect, PCB

Choice of operating characteristics sensitive differential travel as low as 0,0254 mm [0.001 in] maximum, low operating force to 0,56 N [2.0 oz] maximum

Optional series constructions available gold contacts for low energy switching, bifurcated gold contacts for maximum reliability, power load switching capability to 11 A

MIL-PFR-8805 qualified listings available

Potential Applications:

Aerospace

Instrumentation

Appliances

Vending machines

Timing devices

Office equipment

Computer/business equipment

Test instruments

Medical/dental equipment

Communications equipment

HVAC equipment

Manually operated devices

Valves
