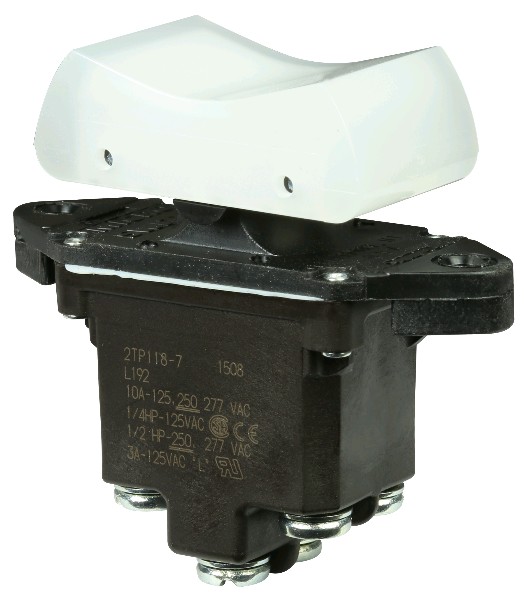

2TP118-7图片5
2TP118-7概述

Switch Rocker ON OFF ON DPDT Screw Rocker 18A 277VAC 250VDC 372.85VA

** TP Series Rocker Switches**

The TP series Micro Switch™ rocker switches have been designed to offer the user the choice of either mounting the switch flush with the panel for a low-button profile or above the panel for a distinct button appearance. The buttons are both removable and interchangeable and come in a wide selection of appearances to choose from, including transparent, translucent plastic and six opaque plastic Colors.

2TP118-7中文资料参数规格
技术参数

额定电压AC 277 V

额定电流 10 A

触点类型 DPDT

额定电流Max 18A @28VDC

额定功率Max 372.85 VA

工作温度Max 71 ℃

工作温度Min -54 ℃

额定电压 125 VAC

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel

物理参数

工作温度 -54℃ ~ 71℃

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买2TP118-7
型号: 2TP118-7
描述:Switch Rocker ON OFF ON DPDT Screw Rocker 18A 277VAC 250VDC 372.85VA
