Switch Toggle ON OFF ON DPDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads
** TL Series Toggle Switches**
The TL series Micro Switch™ toggle switches feature pull-to-unlock toggle levers which help to prevent accidental operation in order for the lever to change position it must be pulled 2.3mm. The have been constructed with high strength, temperature resistant, non-tracking case material and silver cadmium contacts.
艾睿:

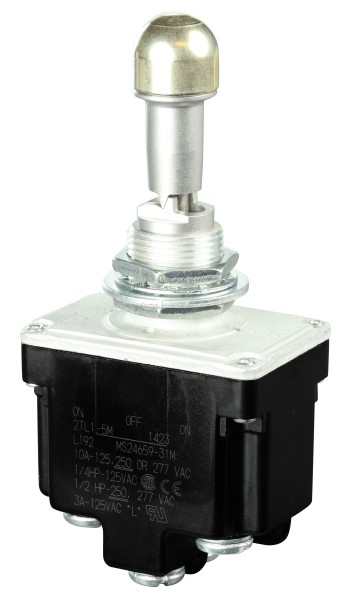

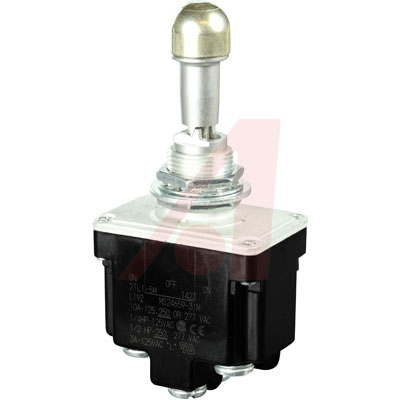

The 2TL1-5M toggle switch from Honeywell comes with minimal lag when toggling a component of your circuit. This device has a maximum current rating of 18 A @ 28VDC. It has a DPDT configuration. This toggle switch has a minimum operating temperature of -65 °C and a maximum of 72 °C. The 2TL1-5M toggle switch has a screw termination style. This product is 34.04 mm long, 75.18 mm tall and 23.11 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Toggle Switch DPDT On-Off-On, 18 A @ 28 V dc, Panel Mount
Chip1Stop:
Switch Toggle ON OFF ON DPDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads
Verical:
Switch Toggle ON OFF ON DPDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads Automotive
MASTER:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 3 Position Mom. On - Off - On, Screw Terminals, Locking Lever Locked Out Of And Into Extreme Position, Opposite Keyway, Military Part Number MS24659-31M
Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Single Throw DPST 2 Position Off - On, Screw Terminals, Locking Lever ...
Electro Sonic:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 3 Position Mom. On - Off - On, Screw ...
