RUBYCON 25ZLG33MEFC6.3X7 铝电解电容, 微型, ZLG系列, 33 µF, ± 20%, 25 V, 6.3 mm, 径向引线
The ZLG series is radial leaded, polarized aluminium electrolytic capacitors. At higher frequencies impedance will be extremely less than ZL series.
- .
- Ultra low impedance
- .
- Capacitance value ranges from 4.7µF to 3900µF
- .
- Available in ±20% tolerance
- .
- Rated voltage of 6.3VDC to 35VDC
- .
- Operating temperature range -40°C to 105°C
- .
- Capacitor size varies from 4mm × 7mm to 12.5mm × 25mm
- .
- Endurance of 1000hours to 5000hours at 105°C depending on case size diameter
额定电压DC 25.0 V
电容 33 µF
容差 ±20 %
纹波电流 480 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2

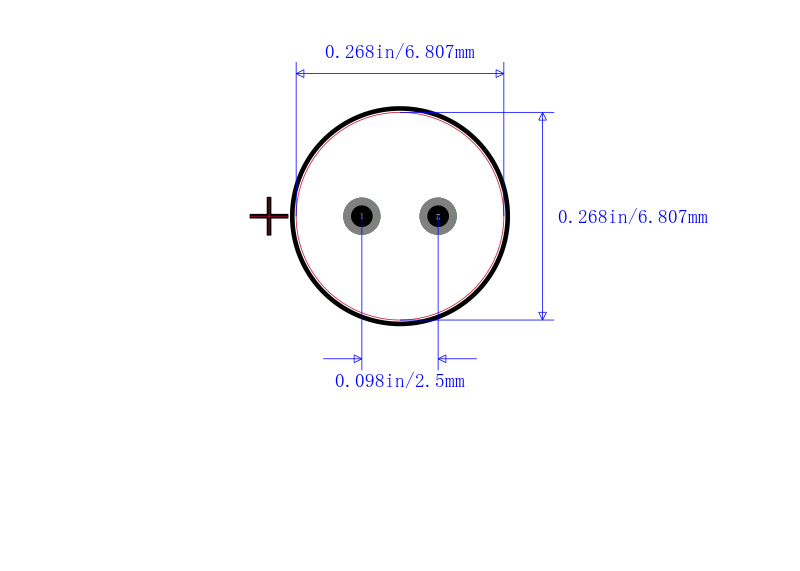

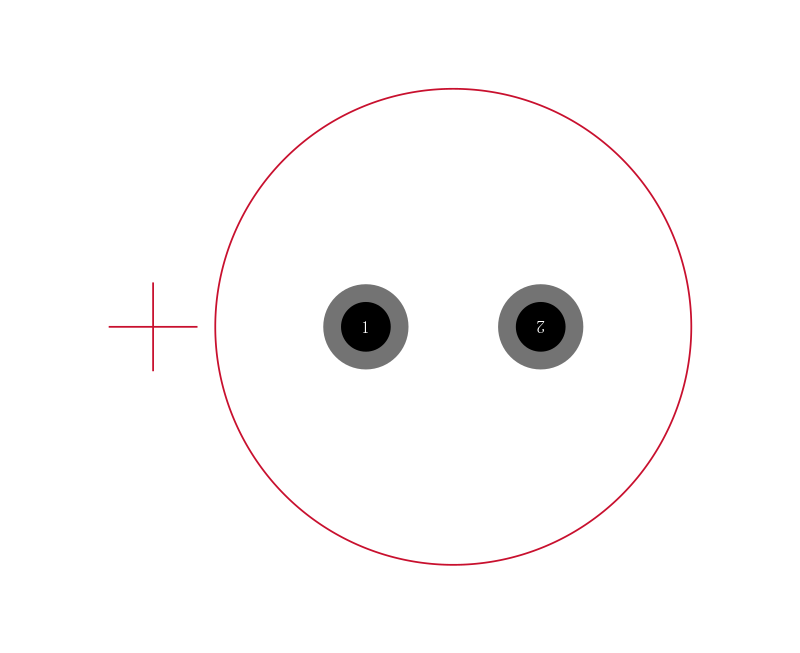

封装 Radial, CAN
引脚间距 2.5 mm
高度 7 mm
直径 6.30 mm
封装 Radial, CAN
引脚间距 2.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Each
最小包装 3000
寿命（小时） 1000h @105℃
制造应用 消费电子产品, 工业, Industrial, Power Management, Portable Devices, Consumer Electronics, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
25ZLG33MEFC6.3X7 Rubycon | 当前型号 | 当前型号 |
MCMHR25V336M6.3X7 Multicomp | 类似代替 | 25ZLG33MEFC6.3X7和MCMHR25V336M6.3X7的区别 |
ECEA1EKS330 松下 | 功能相似 | 25ZLG33MEFC6.3X7和ECEA1EKS330的区别 |
ECEA1EKA330 松下 | 功能相似 | 25ZLG33MEFC6.3X7和ECEA1EKA330的区别 |
