2-928247-6概述

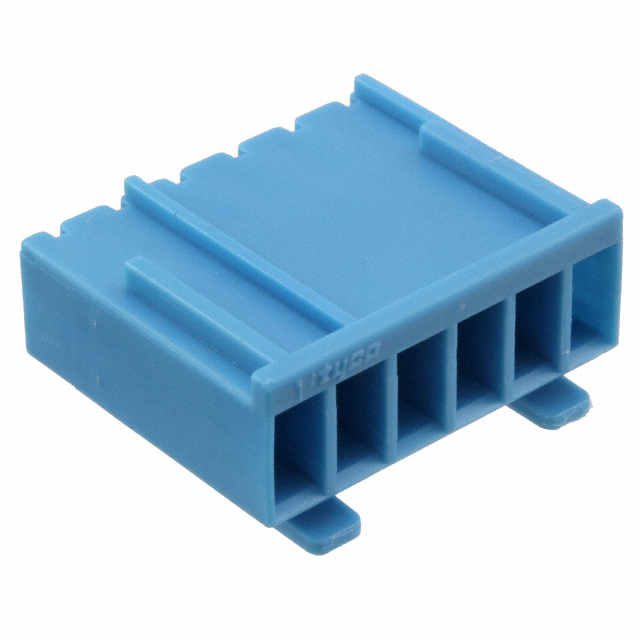

Conn Housing RCP 6POS 5mm Crimp ST Cable Mount Automotive Carton

6 矩形 - 外壳 插座 蓝色 0.197"(5.00mm)


得捷:
CONN RCPT HSG 6POS 5.00MM


贸泽:
Automotive Connectors 6P ST-TIMER GEH


艾睿:
Whether your needs are small or large, this 2-928247-6 discrete wire housing from TE Connectivity can help you in making a secure linkage between a board and socket. This RCP connector has 6 RCP contacts. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. Its pitch is 5 mm. This device has a maximum current rating of 6 A/contact. This product is 14.4 mm tall. 2-928247-6 is housed in blue polyamide 6/6. This rectangle connector has an operating temperature of -40 to 105 °C.


Verical:
Conn Housing RCP 6 POS 5mm Crimp ST Cable Mount Blue Carton Automotive


MASTER:
2-12 POS. STANDARD-TIMER HOUSING 2-12 Pol. Standard-Timer Gehause


Powell:
Standard Timer AMP RAST 5 Appliance Connectors


Online Components:
6P ST-TIMER GEH


Electro Sonic:
6P ST-TIMER GEH


2-928247-6中文资料参数规格
技术参数

触点数 6

排数 1

易燃性等级 UL 94 V-2

针脚数 6

额定电流Max 6A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

外形尺寸

高度 14.4 mm

物理参数

外壳颜色 Blue

颜色 Blue

工作温度 -40℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Signal, Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538906000

数据手册

在线购买2-928247-6
型号: 2-928247-6
描述:Conn Housing RCP 6POS 5mm Crimp ST Cable Mount Automotive Carton
