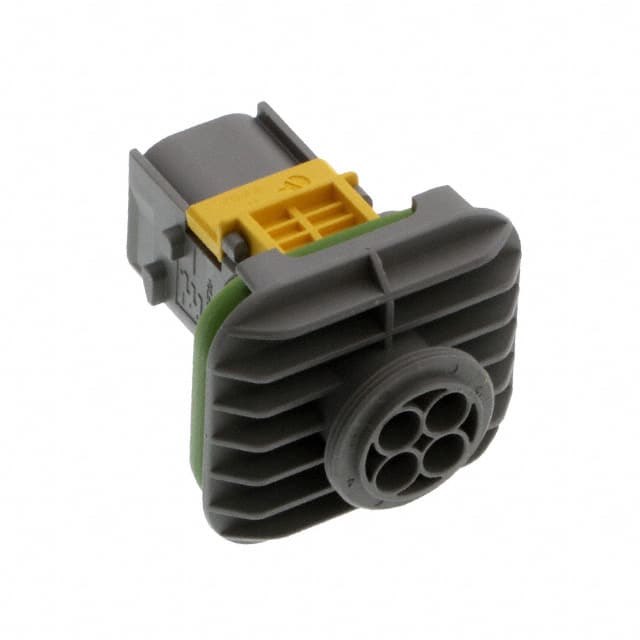

Conn Housing PL 4POS 6mm Crimp ST Cable Mount Automotive Carton
HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities. These cable to cable and cable to device connectors have a slide lock for mating. They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.
得捷:
4POS,TAB 2.8X0.8,TAB HSG,ASSY,CO
立创商城:
2-1703808-1
艾睿:
Conn Housing PL 4 POS 6mm Crimp ST Cable Mount Automotive Carton
安富利:
AMP2-1703808-1
Verical:
Conn Housing PL 4 POS 6mm Crimp ST Cable Mount Gray Carton Automotive
MASTER:
Conn Housing PL 4 POS 6mm Crimp ST Cable Mount Gray Carton Automotive
Online Components:
4POS,TAB 2.8X0.8,TAB HSG,ASSY,CODB
触点数 4
极性 Male
排数 2
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 20 A
工作温度Max 140 ℃
工作温度Min -40 ℃
额定电压Max 42 VDC
额定电压 42 VDC
封装 -
宽度 48.1 mm
高度 48.1 mm
封装 -
外壳颜色 Gray
颜色 Gray
工作温度 -40℃ ~ 140℃
产品生命周期 Active
包装方式 Bulk
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
