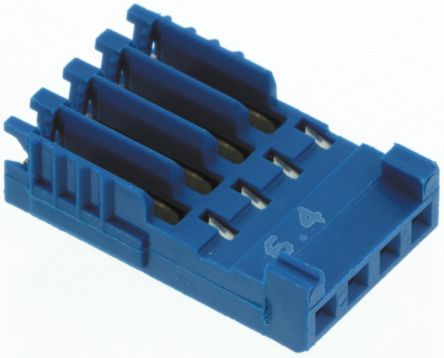

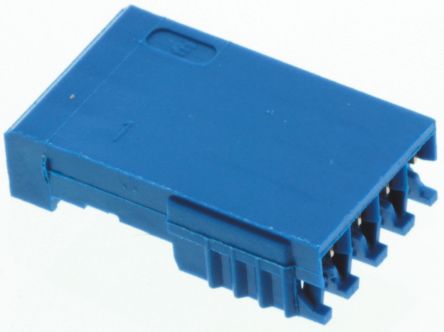

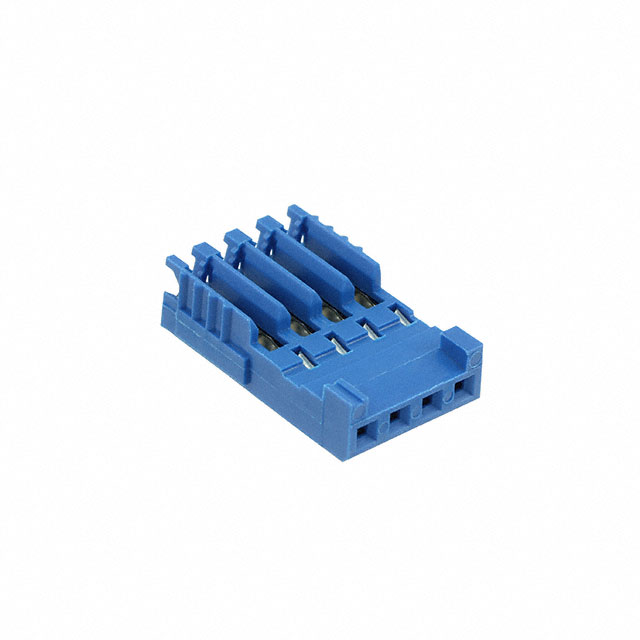

281783-4

180° IDC 插座单排或双排 IDC 触点 极化外壳 适用于散线或带状电缆连接 Insulation Resistance min | 10MΩ ---|--- Contact Resistance | 30 mΩ Current | 3 A at 20° C Proof Voltage | 500 V r.m.s. Insertion/Withdrawal Force | 0.3 N min, 3 N max Temperature Range | -40° C to +105° C Damp Heat Test | 21 Days Durability Mating Cycles | 30 Insulation | UL94-V0 Thermoplastic Pin Contact Material | Brass Socket Contact Material | Phosphor Bronze Contact Plating | Tin over Nickel ### 2.54mm TE Connectivity HE 14 系列

180° IDC 插座

单排或双排 IDC 触点

极化外壳

适用于散线或带状电缆连接

绝缘电阻（最小值） | 10MΩ

---|---

触点电阻 | 30 mΩ

电流 | 20° C 时 3 A

电压防护 | 500 V 有效值

插入/拔出力 | 最小 0.3 N，最大 3 N

温度范围 | -40° C 至 +105° C

湿热测试 | 21 天

耐用性（接合次数） | 30

绝缘 | UL94-V0 热塑性

引脚触点材料 | 黄铜

插座触点材料 | 磷青铜

触点镀层 | 镍镀锡

得捷:
CONN PLUG 4POS IDC 24-26AWG TIN

欧时:
2.54mm,plug,SR,receptacle,4W,HE

立创商城:
281783-4

贸泽:
集管和线壳 RECPT 4 POS

Allied Electronics:
AMPMODU HE14 Series 2.54mm Pitch 4 Way 1 Row Female Straight PCB Housing

安富利:
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Loose Piece

Verical:
Conn Socket Strip SKT 4 POS 2.54mm IDT ST Top Entry Cable Mount Loose

Newark:
# AMP - TE CONNECTIVITY  281783-4  PLUG HE14 IDC 180 4 P AWG 26-24 New

MASTER:
HE 1402 PLUG, 180 deg IDC SINGLE ROW

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
PLUG HE14 IDC 180 4 P AWG 26-24

Electro Sonic:
PLUG HE14 IDC 180 4 P AWG 26-24
