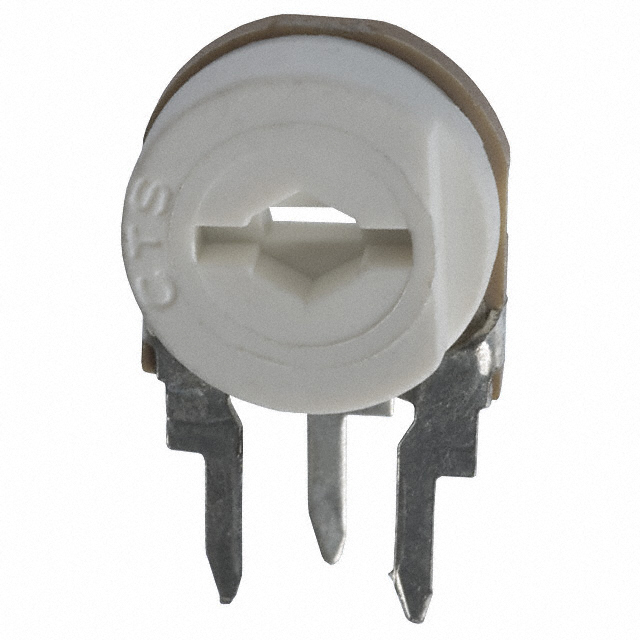

商用微型10毫米导电塑料微调电位器 Commercial Miniature 10mm Conductive Plastic Trimmer Potentiometers
This potentiometer from is designed to optimize functionality and calibrate the resistance in your circuit. This dependable part has a power rating of 0.15 W. This product has a resistance value of 10K Ohm. It has a tolerance of 20%. This device is made with carbon composition technology. This part has an operating temperature of -35 to 85 °C. The 262XR103B part has a pin termination style. This product is 9.4 mm long, 11.9 mm tall and 5.3 mm deep.
容差 ±20 %
额定功率 0.15 W
电阻 10 KΩ
工作温度Max 85 ℃
工作温度Min 35 ℃
安装方式 Through Hole
封装 Square - 0.368" L x 0.165" W x 0.394" H 9.35mm x 4.20mm x 10.00mm
长度 9.4 mm
宽度 5.3 mm
高度 11.9 mm
封装 Square - 0.368" L x 0.165" W x 0.394" H 9.35mm x 4.20mm x 10.00mm
工作温度 -35℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
