293-832

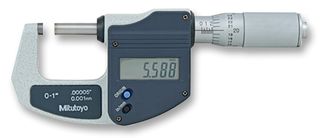

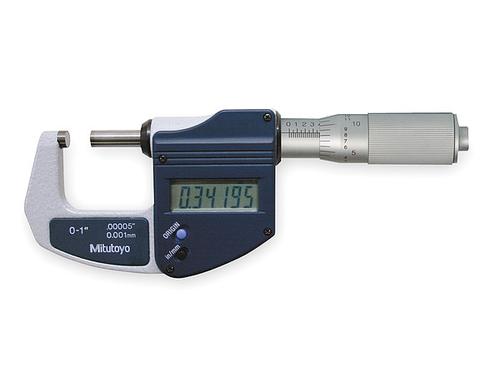

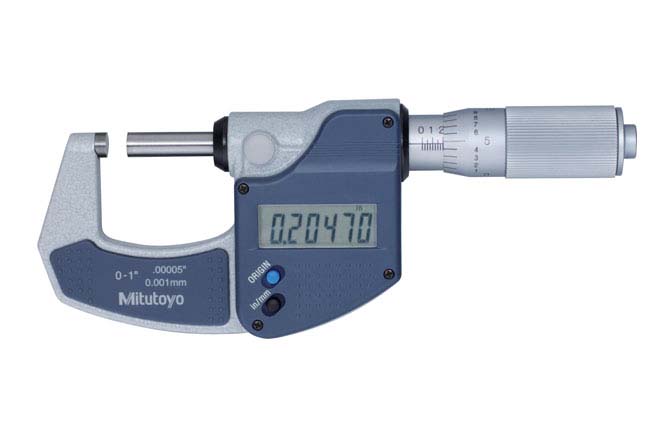

MITUTOYO  293-832  千分尺, 0-25MM

The is a 293-series 25mm Digimatic Micrometre, simple design, such as not incorporating data output,. Provided only with an origin-set button for easy origin setting. Increased operability thanks to easy-to-read LCD with 30% more character display area. Equipped with ratchet stop for constant measuring force and carbide measuring faces. Zero setting - A brief press on the ORIGIN button sets display to zero at the current spindle position zero-setting, which allows easy comparison measurement. Auto power ON/OFF, the reading on the LCD disappears after this instrument is idle for about 20 minutes, but the reading is retained, turning the spindle causes the reading on the LCD to reappear.

.

Friction thimble constant-force device

.

±2µm Accuracy

.

0.001mm Resolution

.

0.3µm/0.000012" Flatness

.

2µm/0.00008" Parallelism

.

5 to 10N Measuring force
