2-1445057-5

Conn Power HDR 5POS 3mm Solder RA SMD 5 Terminal 1Port

MICRO MNL HDR ASSY SINGLE ROW

得捷:
CONN HEADER SMD R/A 5POS 3MM

艾睿:

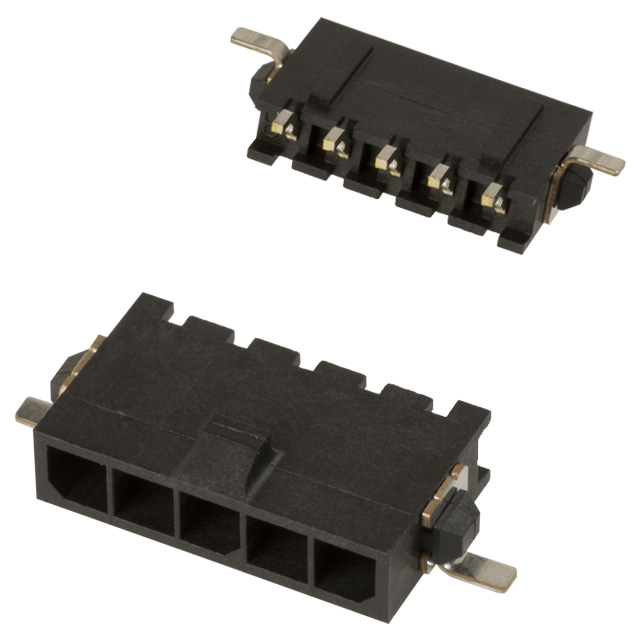

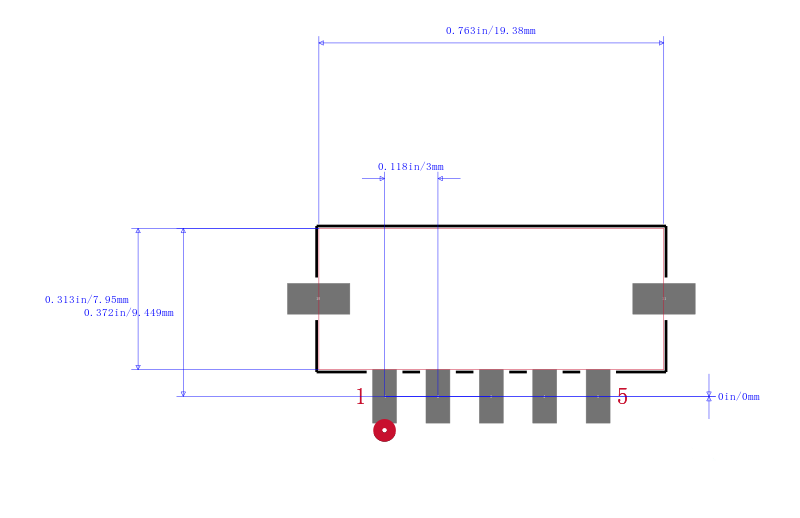

There won&s;t be any energy loss when you power up your circuit using the 2-1445057-5 power connector from TE Connectivity. This HDR connector&s;s 5 contacts that are made out of brass and plated with tin over nickel. Its pitch is 3 mm. It has a maximum voltage rating of 250 VAC. It has a header type gender. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. 2-1445057-5 is housed in nylon. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This power connector has an operating temperature range of -40 °C to 105 °C. Its 5 terminals use the solder termination method. This product is 19 mm long, 5.67 mm tall and 11.16 mm deep.

安富利:
Conn Power HDR 5 POS 3mm Solder RA SMD 5 Terminal 1 Port

Chip1Stop:
Conn Power HDR 5 POS 3mm Solder RA SMD 5 Terminal 1 Port

Verical:
Conn Power HDR 5 POS 3mm Solder RA SMD 5 Terminal 1 Port T/R

Newark:
# AMP - TE CONNECTIVITY  2-1445057-5  MICRO MNL HDR ASSY SINGLE ROW New

MASTER:
RT ANGLE SURFACE MOUNT HEADER ASSY, TIN CONTACTS W/SURF MOUNT HOLDDOWNS,

Powell:
3mm Centerline, 250V, 5 A max.

Online Components:
MICRO MNL HDR ASSY SINGLE ROW

Electro Sonic:
MICRO MNL HDR ASSY SINGLE ROW
