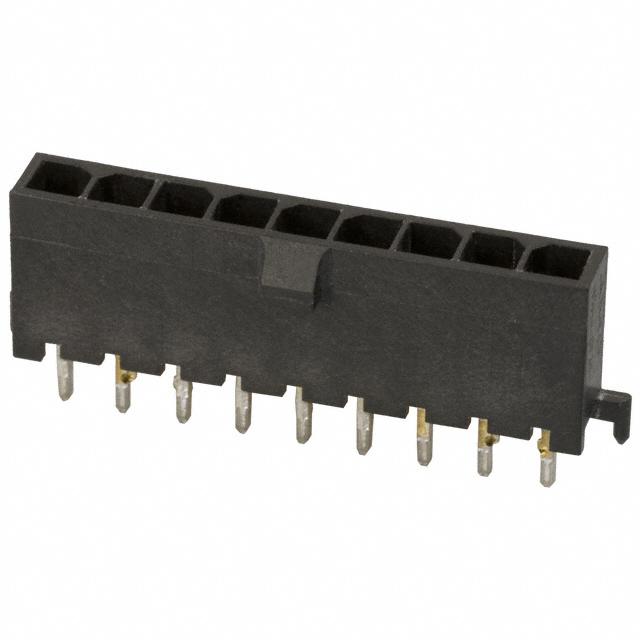

2-1445084-9

Conn Power HDR 9POS 3mm Solder ST Thru-Hole 9 Terminal 1Port T/R/Tray

针座 通孔 9 位置 0.118"（3.00mm）

得捷:
CONN HEADER VERT 9POS 3MM

贸泽:
Pin & Socket Connectors micro mnl hdr assy s/row au lf

艾睿:
Use this 2-1445084-9 power connector from TE Connectivity to connect a power supply to a circuit. This HDR connector&s;s 9 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. It has a maximum voltage rating of 250 VAC. Its pitch is 3 mm. It has a straight body orientation. It has a header type gender. 2-1445084-9 is housed in nylon. This device has a maximum current rating of 5 A/contact. Its 9 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 5.67 mm deep.

Verical:
Conn Power HDR 9 POS 3mm Solder ST Thru-Hole 9 Terminal 1 Port Box/Tray

Powell:
3mm Centerline, 250V, 5 A max.

Online Components:
micro mnl hdr assy s/row au lf

Electro Sonic:
micro mnl hdr assy s/row au lf
