2-794682-4

管脚和插座连接器 24POS MICRO MNL ASSY VRT,THRU

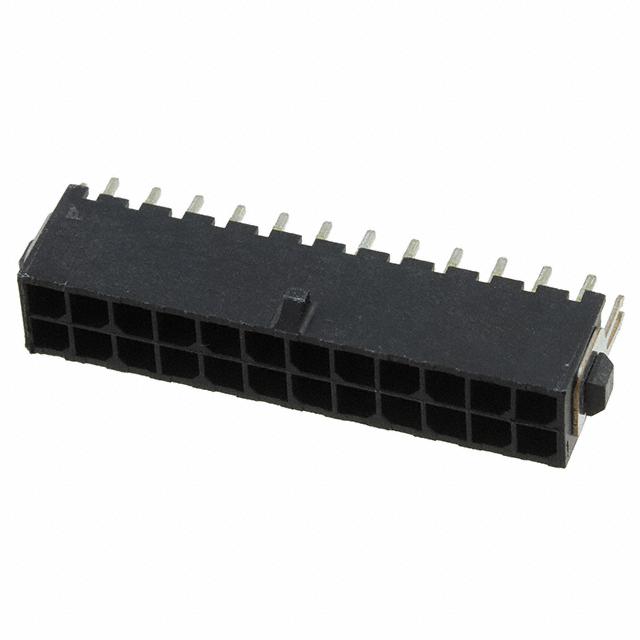

Connector Header Through Hole 24 position 0.118" 3.00mm

得捷:
CONN HEADER VERT 24POS 3MM

贸泽:
管脚和插座连接器 24POS MICRO MNL ASSY VRT,THRU

艾睿:
This wire to board 2-794682-4 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 24 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 2-794682-4 is housed in black nylon. This product is 40 mm long, 9.24 mm tall and 8.67 mm deep.

Powell:
3mm Centerline, 250V, 5 A max.
