2249-E-600

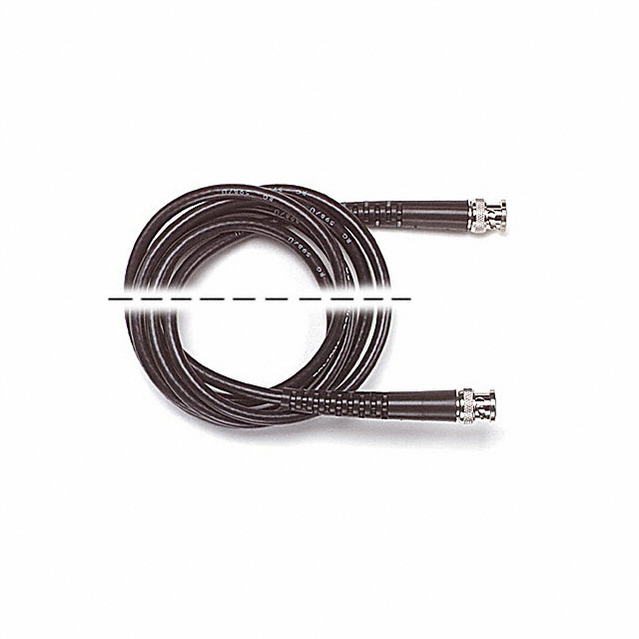

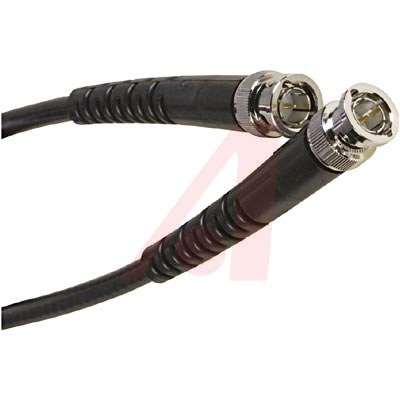

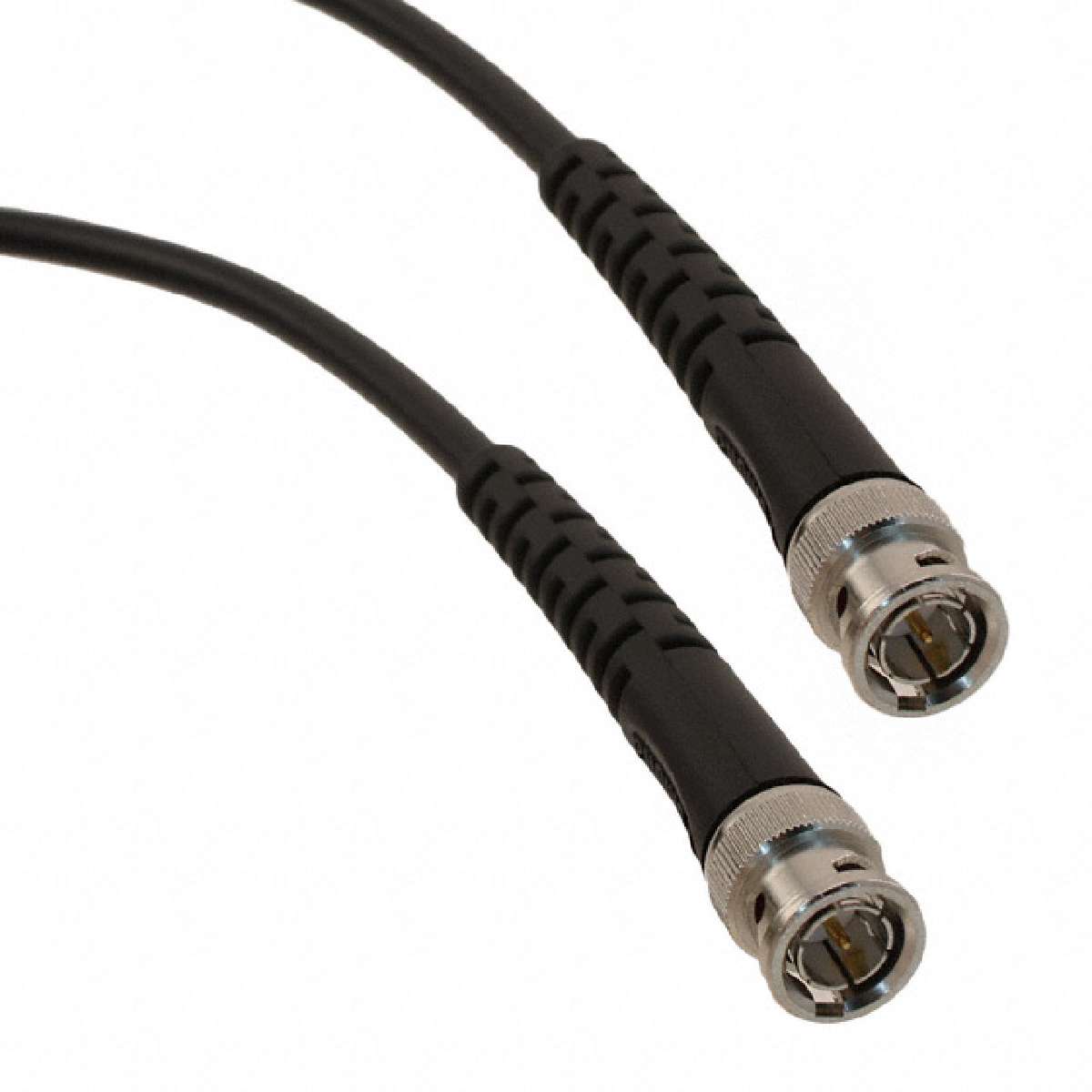

POMONA 2249-E-600 RF/Coaxial Cable Assembly, BNC Male Plug to BNC Male Plug on RG59B/U Cable, 600 " 15.24m, Black

Model 2249 Cable Assemblies with BNC Male, 75 Ohms Impedance, Bare Copper Braid Shield

Whether you"re working at an event, in a mobile truck, or in the studio, professionals like you need the cleanest, clearest signals for broadcast and production. Pomona"s new line of 75 Ω digital video and audio broadcast connectors and cable assemblies deliver the ruggedness and reliability you need.

The transmission of today"s digital video signals is demanding higher bandwidth and greater signal purity than the analog signals of yesterday. 75 Ω connectors from Pomona help meet these demands by reducing signal loss. Pomona digital video connectors are true 75 Ω, precision-machined from high quality materials.

Model 2249-E RG59B/U uses 75 Ohm cable, also making it the right choice for use with digital video applications.

** Features**

* Made from Precision Machined High Quality Brass for Superior Performance

* Center Contacts Are Plated with 20 Micro Inches of Gold for Better Conductivity

* Insulation Material Is High Density PTFE

* All Connectors and Adapters Are 75 Ohm for Broadcast Applications

* Female Center Contacts Are Made from Heat Treated Beryllium Copper for Long Wear Life

* Rating: 500 V RMS , +122°F +50°C Max.

* BNC Body: Tarnish Resistant Nickel-Plated Brass

* Center Contact: Gold-Plated Brass

* Dielectric: PTFE

* Strain Relief: PVC Molded Directly to Cable and Connectors
