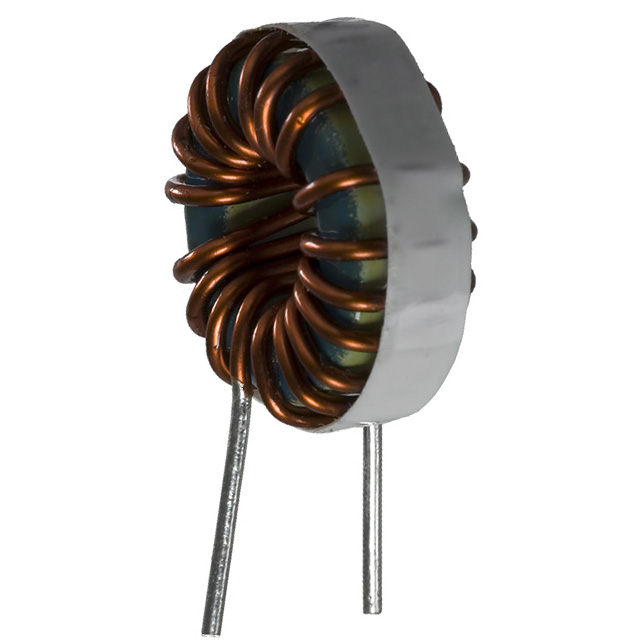

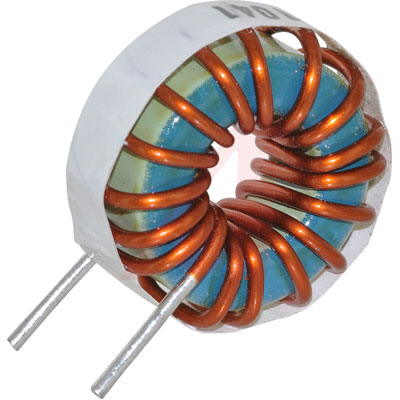

2309-V-RC

BOURNS JW MILLER  2309-V-RC  螺线电感, 竖直安装, 47uH, 15%, 10.7A

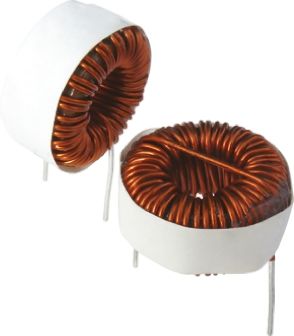

Bourns 2300 系列径向扼流圈

直流/直流转换器，EMI 滤波器应用

低辐射

低磁芯损耗

高电流容量

水平或重直安装

产品尺寸：外径 32.5mm，厚 16.5mm

工作温度 -55 至 +105°C

得捷:
FIXED IND 47UH 10.7A 16 MOHM TH

欧时:
Bourns 2300 系列 47 μH ±15% 2309-V-RC 引线型电感器, 10.7A Idc, 16mΩ Rdc, 32.51mm直径

e络盟:
环形电感, 高电流, 2300系列, 47 µH, 10.7 A, 0.016 ohm, ± 15%

艾睿:

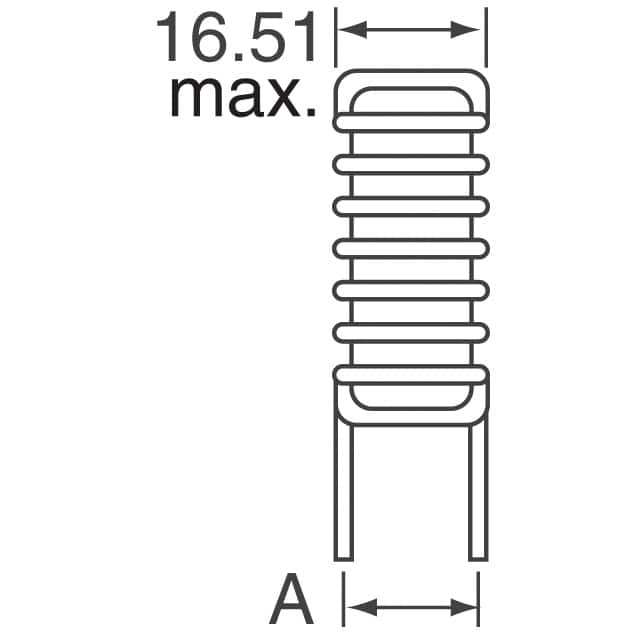

This high current 2309-V-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 13.46 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has an inductance of 47u/29uRated H. This device utilizes toroid technology. This product is 16.51 mm deep. It has a tolerance of 15%. This leaded inductor has a maximum DC current of 10.7 A with a maximum resistance of 16m Ohm. Its test frequency is 1K Hz.

Allied Electronics:
Inductor; Toroid, High Current; 47 uH; 15%; 0.016 Ohm DCR Max; Vertical

安富利:
Ind High Current Toroid 47uH 15% 1KHz 10.7A RDL

Verical:
Inductor High Current Toroid 47uH/29uH 15% 1KHz 10.7A 0.016Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2309-V-RC  Inductor, Toroidal, High Current, 2300 Series, 47 µH, 10.7 A, 0.016 ohm, ± 15%

MASTER:
Inductor High Current Toroid 47uH/29uH 15% 1KHz 10.7A 16mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 47uH/29uH 15% 1KHz 10.7A 16mOhm DCR RDL
