216604-2

集管和线壳 2X02P RCPT HV-190 SE

2X 2P HV190FEDERLEI

得捷:
CONN RCPT 4POS 0.1 GOLD PCB R/A

贸泽:
集管和线壳 2X02P RCPT HV-190 SE

艾睿:

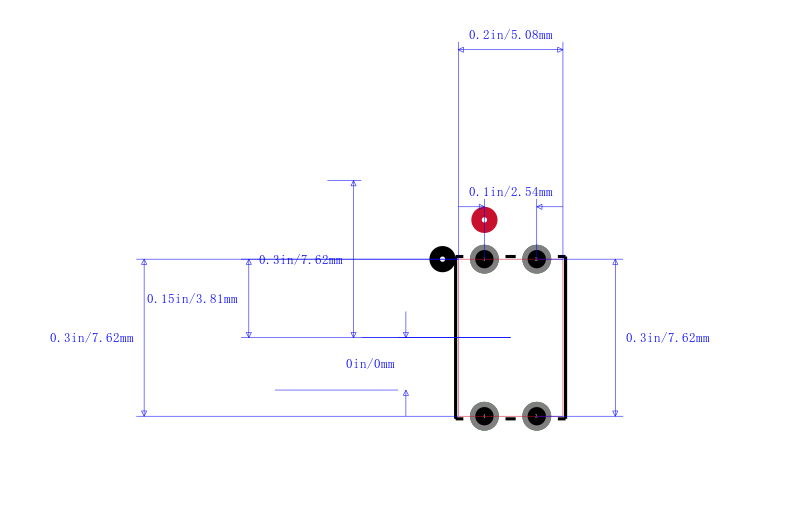

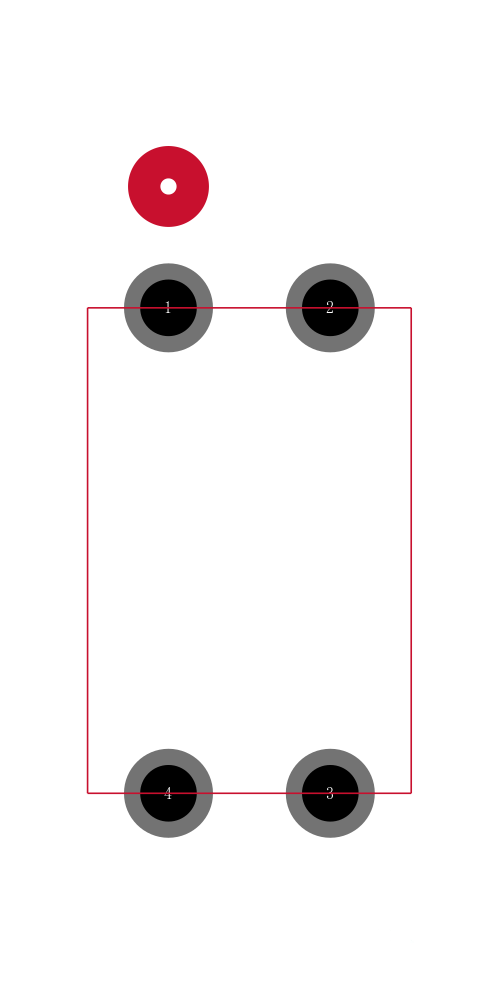

Reduce safety concerns with this socket strip 216604-2 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. 216604-2 is housed in green polyester. This connector has an operating temperature of -65 to 125 °C. This product is 10.16 mm long, 5.8 mm tall and 7.62 mm deep.

安富利:
Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  216604-2  2X 2P HV190FEDERLEI New

MASTER:
HV 190 HOR. ASSY DUAL ROW, GOLD VERSION, MAX. 2X65 POSITIONS

Powell:
AMPMODU Mod II Horizontal Connector

Online Components:
2X 2P HV190FEDERLEI

Electro Sonic:
2X 2P HV190FEDERLEI
