2-178313-2

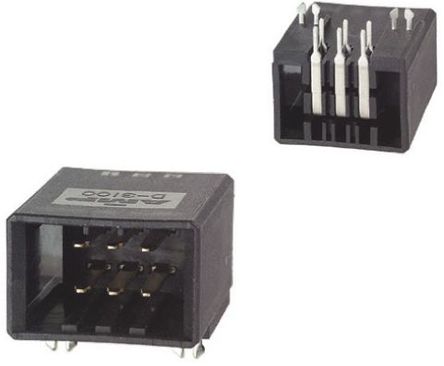

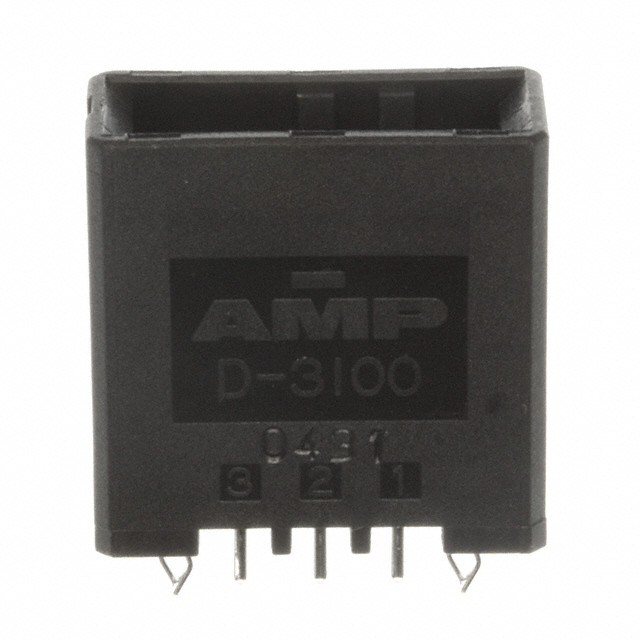

Dynamic D-3100 系列管座TE Connectivity Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。### 注有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571### TE Connectivity Dynamic 3000 系列### Tyco 动态 3000 系列

Dynamic D-3100 系列管座

Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571

得捷:
CONN HEADER VERT 3POS 3.81MM

欧时:
TE Connectivity PCB 针座 Dynamic 3000 系列 3路 3.81mm节距 直向 2-178313-2, 焊接端接, 12A, 通孔

贸泽:
集管和线壳 HDR 3 POS VERT 15 AU KEY-Y

艾睿:
This 2-178313-2 power connector from TE Connectivity comes in a variety of types to support AC or DC power entry modules. This M connector&s;s 3 contacts that are made out of copper alloy and plated with gold over nickel. It has a male type gender. This connector has a single port. It has a maximum voltage rating of 250 VAC. Its pitch is 3.81 mm. It has a straight body orientation. This device has a maximum current rating of 12 A/contact. 2-178313-2 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 21.62 mm long, 21.6 mm tall and 9.35 mm deep. Its 3 terminals use the solder termination method.

Allied Electronics:
Dynamic 3000 Series, 3.81mm Pitch 3 Way Straight PCB Header, Solder Term, 12A

安富利:
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube

Verical:
Conn Power M 3 POS 3.81mm Solder ST Thru-Hole 3 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  2-178313-2  DYNAMIC 3100 HDR V 3P ASSY New

MASTER:
3 pos single row vertical hdr assy for dynamic d-3100

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC 3100 HDR V 3P ASSY

Electro Sonic:
DYNAMIC 3100 HDR V 3P ASSY
