2143272-1

高速/模块连接器 IMP100OHMPV6P12 CUGREW394.9

Connector Header, Male Pins Through Hole Black Impact

得捷:
CONN HEADER IMPACT 216POS PCB

立创商城:
2143272-1

贸泽:
高速/模块连接器 IMP100OHMPV6P12 CUGREW394.9

艾睿:

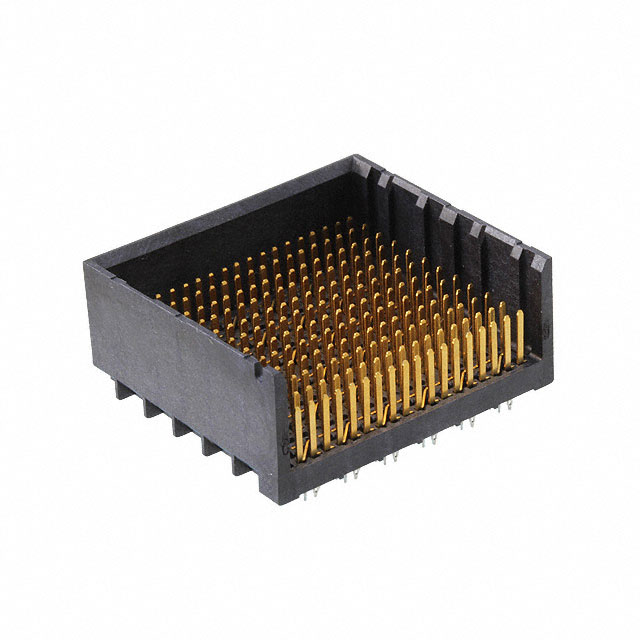

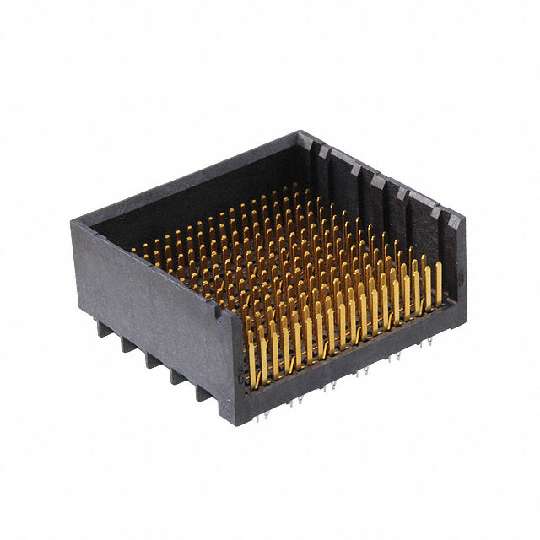

TE Connectivity brings you their latest 2143272-1 backplane connector, a connector that can be used to transfer multiple bits of data from one computer system to another. This HDR connector&s;s 144signal / 72ground contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 120 VDC|120VAC. This is a 18-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 2143272-1 is housed in liquid crystal polymer. It uses the solder termination method. This product is 25.55 mm long, 28.6 mm tall and 28.9 mm deep. This backplane connector has an operating temperature of -55 to 85 °C.
