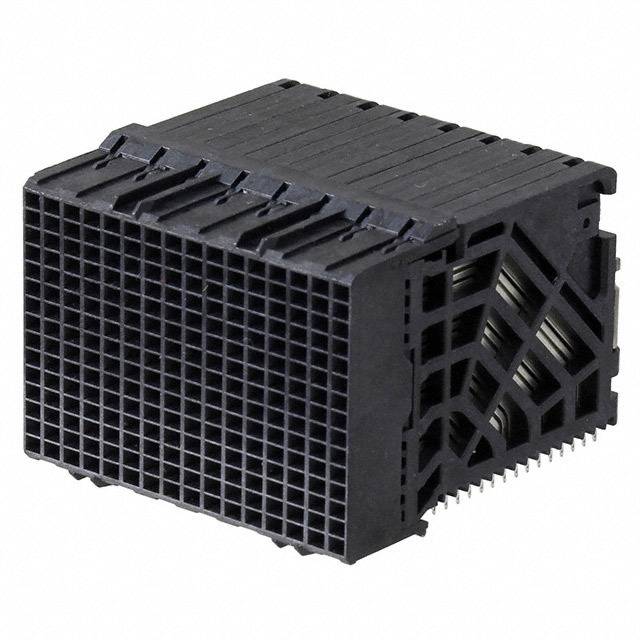

2110124-1

Conn Backplane RCP 240POS 1.9mm Solder RA Thru-Hole

Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact

得捷:
CONN RCPT IMPACT 240POS EDGE MNT

艾睿:
When you have numerous wires connected in parallel, then use this 2110124-1 backplane connector from TE Connectivity to make sure all the data flows through. This RCP connector&s;s 160signal / 80ground contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. This is a 15-row connector. It has a receptacle type gender. It has a maximum voltage rating of 120 VDC|120VAC. Its pitch is 1.9 mm. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This backplane connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. 2110124-1 is housed in liquid crystal polymer. This product is 30.4 mm long, 23.6 mm tall and 32.3 mm deep.

Chip1Stop:
Conn Backplane RCP 240 POS 1.9mm Solder RA Thru-Hole
