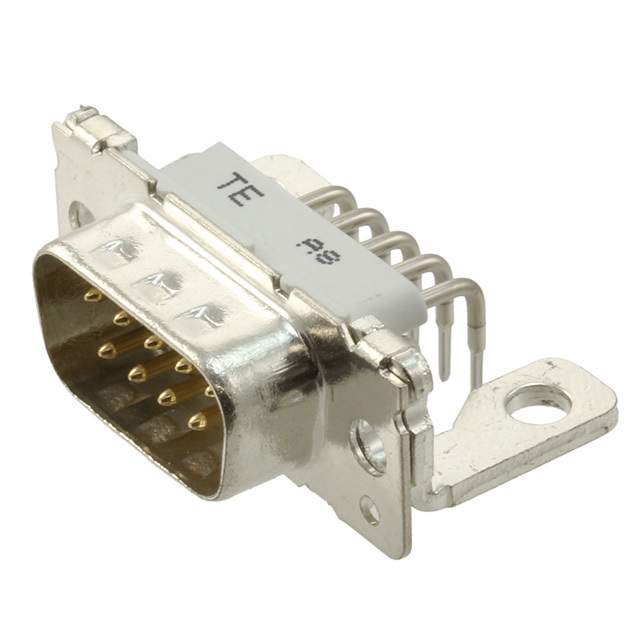

2-1393480-1

Conn D-Subminiature PIN 9POS 2.74mm Solder RA Thru-Hole 9 Terminal 1Port

V23529B1121C209=SUB D STIFTLEI

Product Highlights

Number of Positions = 9

Plug

PCB Mount Angle = Right Angle

Product Series = HD 20 Type B - Solder Terminal

Without Mating Connector Lock

得捷:
CONN D-SUB PLUG 9POS R/A SLDR

贸泽:
D-Sub Standard Connectors V23529B1121C209=SUBD STIFTLEI

艾睿:
This 2-1393480-1 DVI connector from TE Connectivity is ideal for all your serial communication needs. Its pitch is 2.74 mm. This 2-row connector has a single port. It has a right angle body orientation. 2-1393480-1 is housed in thermoplastic. This device has a maximum current rating of 2.2 A/contact. This product is 31.19 mm long, 12.93 mm tall and 21.12 mm deep. Its 9 terminals use the solder termination method. This DVI connector has an operating temperature of -55 to 125 °C.

安富利:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Box

Verical:
Conn D-Subminiature PIN 9 POS 1.37mm Solder RA Thru-Hole 9 Terminal 1 Port Box

MASTER:
mounting height 3,6 mm

Powell:
Standard Board Mount Connectors

Online Components:
V23529B1121C209=SUB D STIFTLEI

Electro Sonic:
V23529B1121C209=SUB D STIFTLEI
