2-2132230-0

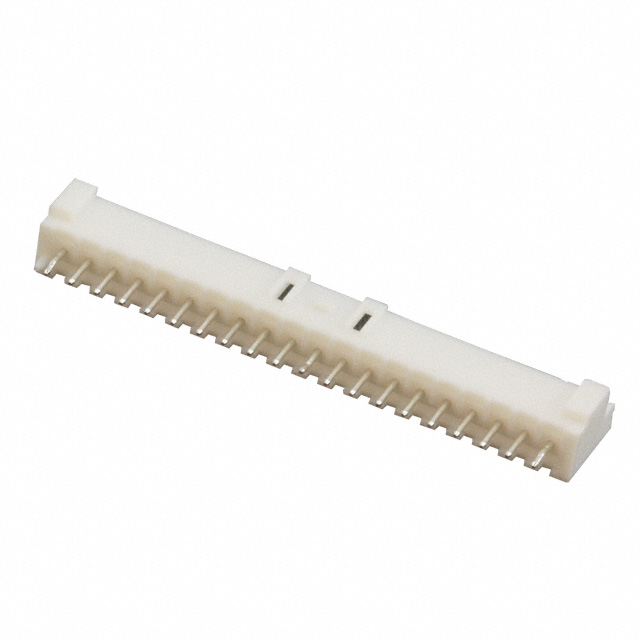

TE CONNECTIVITY 2-2132230-0 Wire-To-Board Connector, Vertical, 2.5mm, 20Contacts, Header, Through Hole, 1Rows

针座 通孔 20 位置 0.098"（2.50mm）

得捷:
CONN HEADER VERT 20POS 2.5MM

艾睿:
Harsh and stressful environments are no match for this robust 2-2132230-0 power connector from TE Connectivity. This HDR connector&s;s 20 contacts that are made out of brass and plated with tin. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. Its pitch is 2.5 mm. This connector has a single port. It has a header type gender. 2-2132230-0 is housed in nylon 6/6. This device has a maximum current rating of 3 A/contact. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 52.5 mm long, 8.8 mm tall and 6.4 mm deep. Its 20 terminals use the solder termination method.

安富利:
Conn Power HDR 20 POS 2.5mm Solder ST Thru-Hole 20 Terminal 1 Port Bag/Box

Verical:
Conn Shrouded Header HDR 20Power POS 2.5mm Solder ST Top Entry Thru-Hole Bag

Newark:
# TE CONNECTIVITY  2-2132230-0  Wire-To-Board Connector, 2.5 mm, 20 Contacts, Header, Economy Power 2.5 Series, Through Hole

MASTER:
HEADER ASSEMBLY, VERTICAL, ECONOMY POWER, 2.5mm CENTERLINE

Online Components:
EP2.5 Shrouded HDR ASSY 20P VE

Electro Sonic:
EP2.5 Shrouded HDR ASSY 20P VE
