2007704-1

Conn Backplane RCP 90POS 1.9mm Solder RA Thru-Hole

IMP100S,R,RA3P10C,RG,39

得捷:
CONN RCPT IMPACT 90POS EDGE MNT

艾睿:

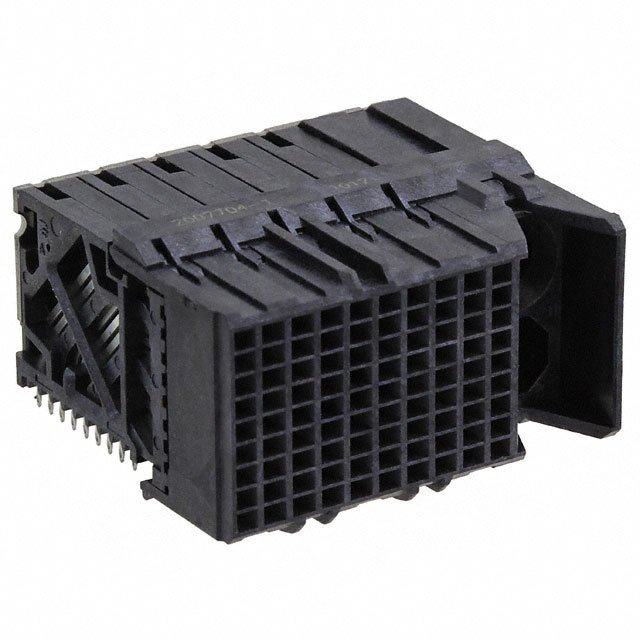

TE Connectivity brings you their latest 2007704-1 backplane connector, a connector that can be used to transfer multiple bits of data from one computer system to another. This RCP connector&s;s 60signal / 30ground contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 120 VDC|120VAC. It has a receptacle type gender. This is a 9-row connector. Its pitch is 1.9 mm. It has a right angle body orientation. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 26.6 mm long, 15.38 mm tall and 24.2 mm deep. 2007704-1 is housed in liquid crystal polymer. This backplane connector has an operating temperature of -55 to 85 °C. It uses the solder termination method.

安富利:
Conn Backplane RCP 90 POS 1.9mm Solder RA Thru-Hole

Chip1Stop:
Conn Backplane RCP 60Signal/30Ground POS 1.9mm Solder RA Thru-Hole Tube

Verical:
Conn Backplane RCP 60Signal/30Ground POS 1.9mm Press Fit RA Thru-Hole Tube

Newark:
# TE CONNECTIVITY  2007704-1  Connector, IMPACT Series, Backplane, 60 Contacts, Receptacle, 1.9 mm, Press Fit

MASTER:
IMPACT, 3 PAIR, DAUGHTERCARD 10 COLUMN, RIGHT GUIDED, SIGNAL MODULE, 0.39 EYELET

Online Components:
IMP100S,R,RA3P10C,RG,39

Electro Sonic:
IMP100S,R,RA3P10C,RG,39
