2101-H-RC

BOURNS JW MILLER  2101-H-RC  螺旋管电感, 10uH, 15%容差

* DC/DC converter, EMI fi lter applications * Low radiation * Low core loss * High current capacity * Horizontal or vertical mount * Low cost * Operating temperature -55 to +105 °C

得捷:
FIXED IND 10UH 10.8A 6 MOHM TH

e络盟:
螺旋管电感, 10uH, 15%容差

艾睿:

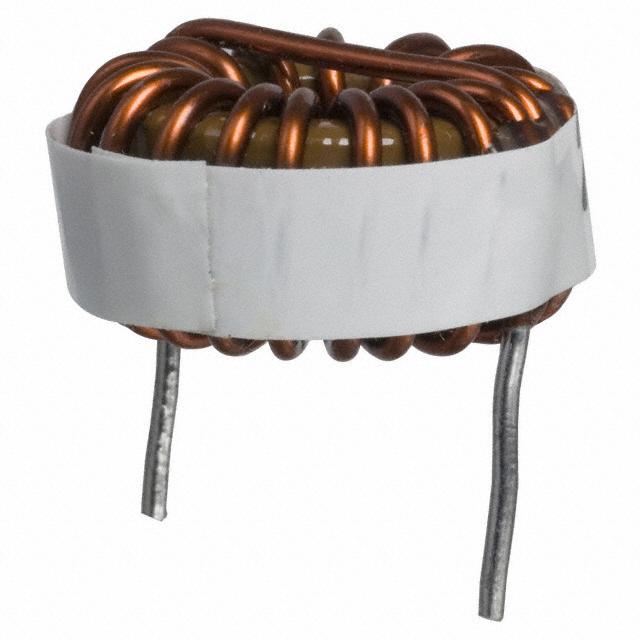

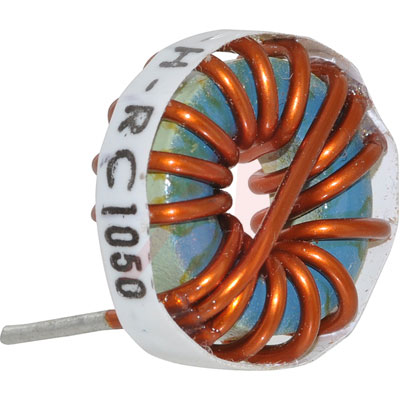

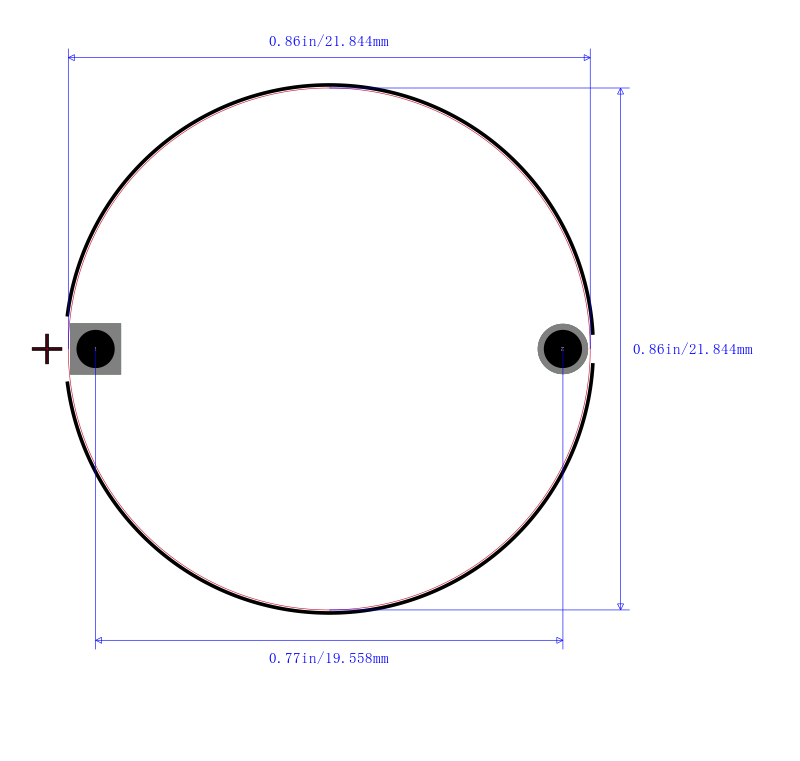

This high current 2101-H-RC leaded inductor from Bourns is convenient and easily removable. This part has a pitch of 19.56 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This leaded inductor has a maximum DC current of 10.8 A with a maximum resistance of 6m Ohm. It has a tolerance of 15%. This device is made with toroid technology. It has an inductance of 10u/6.3uRated H. Its test frequency is 1K Hz. This product is 11.43 mm tall with a diameter of 21.84 mm.

Allied Electronics:
10 uH +/-15% Radial Inductor, Max SRF:1kHz, 10.8A Idc, 6mOhms Rdc 2100

安富利:
Ind High Current Toroid 10uH 15% 1KHz 10.8A RDL

Chip1Stop:
Inductor High Current Toroid 10uH/6.3uH 15% 1KHz 10.8A 6mOhm DCR RDL

Verical:
Inductor High Current Toroid 10uH/6.3uH 15% 1KHz 10.8A 0.006Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2101-H-RC  Inductor, Toroidal, High Current, 2100 Series, 10 µH, 10.8 A, 6000 µohm, ± 15%

MASTER:
Inductor High Current Toroid 10uH/6.3uH 15% 1KHz 10.8A 6mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 10uH/6.3uH 15% 1KHz 10.8A 6mOhm DCR RDL
