24D10-100SHDOD

Relay; Time Delay; Off Delay; 10-100S; DPDT; Ctrl-V 24VDC; 4A; 250VAC; SSR; Pnl; QC; HDOD

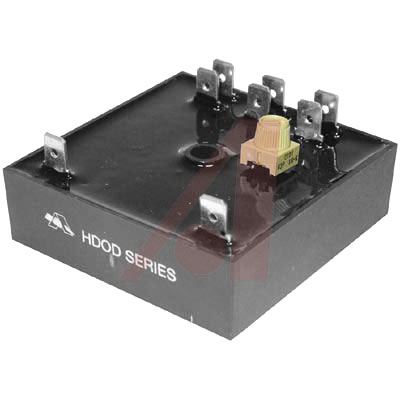

The HDOD Series uses digital CMOS circuitry in a hockey puck enclosure 2.5" × 2.5" × 3⁄4", epoxy sealed.

.

*Timing Mode:** Adjustable by means of a built-in potentiometer with timing up to 100 minutes. True delay-on-dropout; timing cycle after removal of power. DPDT 2 form C isolated relay contacts. **Contact rating:** 4 A. **Operating Temperature:** Ambient –40°C to +65°C. **Mounting:** Center hole mounting.

Allied Electronics:
Relay; Time Delay; Off Delay; 10-100S; DPDT; Ctrl-V 24VDC; 4A; 250VAC; SSR; Pnl; QC; HDOD

Newark:
# AMPERITE  24D10-100SHDOD  Time Delay Solid State Relay, Panel, 4 A, 250 VAC, Delay-On-Release
