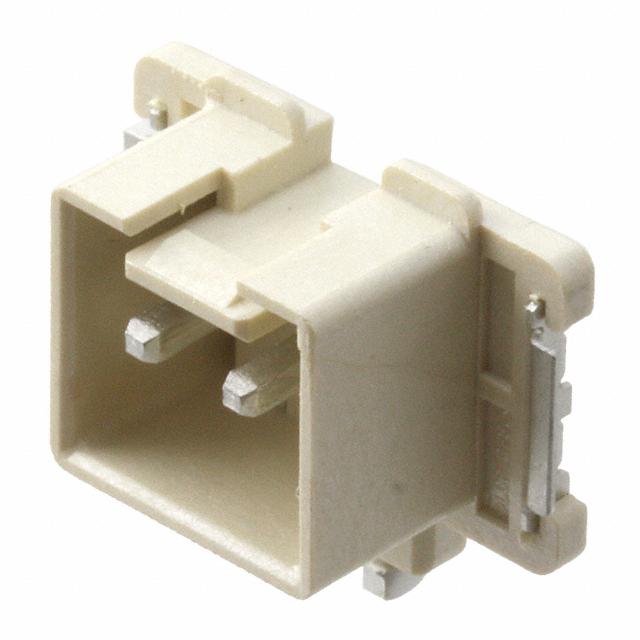

2154829-1

AMP FROM TE CONNECTIVITY  2154829-1  连接器, 针座, 2路, 1排, 3.96MM

固态照明 2 位置 接头，公引脚 板至电缆/导线 0.156"（3.96mm） 焊接

得捷:
CONN SSL HDR 2POS 3.96MM SOLDER

贸泽:
照明连接器 2P HP Inverted Thru Board Connector

e络盟:
线至板连接器, 2 触点, 针座, 3.96 mm, 表面安装　, 1 排

艾睿:
This specially engineered 2154829-1 power connector from TE Connectivity is designed for various high voltage and current supplies. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. It has a header type gender. This connector has a single port. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. 2154829-1 is housed in liquid crystal polymer. This device has a maximum current rating of 7 A/contact. Its 2 terminals use the solder termination method. This power connector has a minimum operating temperature of -30 °C and a maximum of 105 °C. This product is 17.38 mm long, 8.4 mm tall and 15.3 mm deep.

Verical:
Conn Power HDR 2 POS 3.96mm Solder ST SMD 2 Terminal 1 Port Package

Newark:
# AMP - TE CONNECTIVITY  2154829-1  Wire-To-Board Connector, Surface Mount, Header, 2, 3.96 mm, Tin Plated Contacts

MASTER:
Conn Power HDR 2 POS 3.96mm Solder ST SMD 2 Terminal 1 Port Package

Online Components:
High Power Inverted Thru Board Con 2 Pos

Electro Sonic:
High Power Inverted Thru Board Con 2 Pos
