20020110-D061A01LF

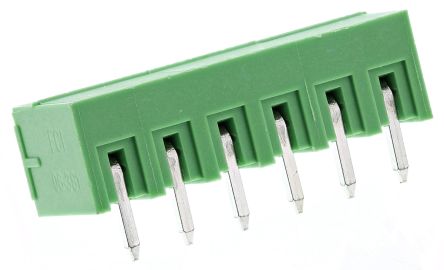

20020110-D061A01LF图片1

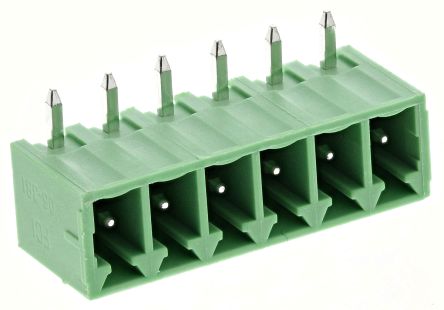

20020110-D061A01LF图片2

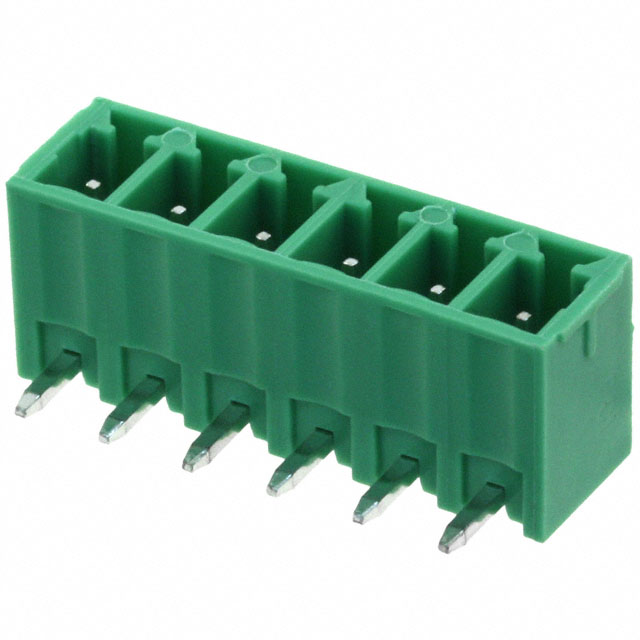

20020110-D061A01LF图片3
20020110-D061A01LF图片4
20020110-D061A01LF图片5
20020110-D061A01LF图片6
20020110-D061A01LF概述

3.81 mm Pitch FCI Terminal Block Socket,Right AngleRobust and solid design Rated at 10A End-to-end stackable Durability: 200 cycles Mates with Plugs typical stock numbers: 707-5121 Side entry or 707-5155 Top entry ### 认可UL recognised for US and Canada### 3.81mm Pitch FCI Terminal BlocksFCI’s PCB signal 3.81 mm pitch Terminal Blocks. These 3.81 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.

3.81 mm Pitch FCI Terminal Block Socket,Right Angle

Robust and solid design

Rated at 10A

End-to-end stackable

Durability: 200 cycles

Mates with Plugs typical stock numbers: 707-5121 Side entry or 707-5155 Top entry

### 认可

UL recognised for US and Canada


欧时:
Amphenol FCI 06-381 系列 3.81mm 节距 6 路 公 绿色 直角 针座 20020110-D061A01LF, 通孔, 焊接端接


Allied Electronics:
FCI 06-381 SER 3.81mm Pitch RightAngle Pluggable Trm Blk, Header w/ Solder Term


20020110-D061A01LF中文资料参数规格
技术参数

触点数 6

极性 Male

触点电镀 Tin

额定电流 8 A

排数 1

针脚数 6

额定电压 300 VAC

封装参数

安装方式 Through Hole

外形尺寸

长度 23.95 mm

宽度 9.2 mm

物理参数

颜色 Green

触点材质 Copper Alloy

材质 Nylon

工作温度 -40℃ ~ 115℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

在线购买20020110-D061A01LF
型号: 20020110-D061A01LF
制造商: FCI Electronics 法马通
描述:3.81 mm Pitch FCI Terminal Block Socket,Right Angle Robust and solid design Rated at 10A End-to-end stackable Durability: 200 cycles Mates with Plugs typical stock numbers: 707-5121 Side entry or 707-5155 Top entry ### 认可 UL recognised for US and Canada ### 3.81mm Pitch FCI Terminal Blocks FCI’s PCB signal 3.81 mm pitch Terminal Blocks. These 3.81 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.
替代型号20020110-D061A01LF
型号/品牌 代替类型 替代型号对比

20020110-D061A01LF

FCI Electronics 法马通

当前型号

当前型号

OQ06325100J0G

法马通

功能相似

20020110-D061A01LF和OQ06325100J0G的区别
