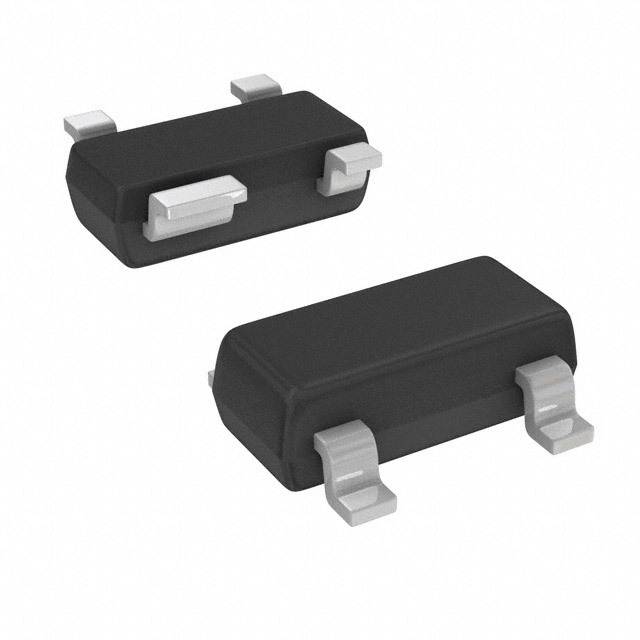

Infineon BAR61E6327HTSA1 PIN 二极管, Ifor=140mA, Vrev=100V, HF, 4引脚 SOT-143封装
PIN ，
多种 PIN 二极管，适用于射频开关和衰减器应用。
得捷:
RF DIODE PIN 100V 250MW SOT143
欧时:
Infineon BAR61E6327HTSA1 PIN 二极管, Ifor=140mA, Vrev=100V, HF, 4引脚 SOT-143封装
e络盟:
二极管, 射频/PIN, PI元件, 8 ohm, 100 V, SOT-143, 4引脚, 0.5 pF
艾睿:
If you need to have a user inputted password for your system, use an attenuator and switch BAR61E6327HTSA1 PIN diode from Infineon Technologies. Its maximum power dissipation is 250 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This PIN diode attenuator has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
Diode PIN Attenuator/Switch 100V 4-Pin SOT-143 T/R
Verical:
Diode PIN Attenuator/Switch 100V 140mA Automotive 4-Pin SOT-143 T/R
额定电压DC 100 V
额定电流 140 mA
电容 0.5 pF
输出电流 ≤140 mA
正向电压 1.25 V
耗散功率 0.25 W
正向电流 140 mA
击穿电压 100 V
正向电压Max 1.25 V
正向电流Max 140 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 2.9 mm
宽度 1.3 mm
高度 0.9 mm
封装 TO-253-4
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 High Speed Data Networks, Wireless Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
