INFINEON BSC042NE7NS3GATMA1 晶体管, MOSFET, N沟道, 100 A, 75 V, 0.0037 ohm, 10 V, 3.1 V
OptiMOS™3 功率 MOSFET,60 至 80V
OptiMOS™ 产品提供高性能封装,可处理最具挑战性的应用,在有限空间提供全部灵活性。 这些 Infineon 产品经的设计符合并超过计算机应用中更严格的下一代电压调节标准的能效和功率密度要求。
快速切换 MOSFET,用于 SMPS
优化技术,用于直流/直流转换器
符合目标应用的 JEDEC1 规格
N 通道,逻辑电平
极佳的栅极电荷 x R DSon 产品 FOM
极低导通电阻 R DSon
无铅电镀
得捷:
MOSFET N-CH 75V 19A/100A TDSON
立创商城:
N沟道 75V 100A 19A
欧时:

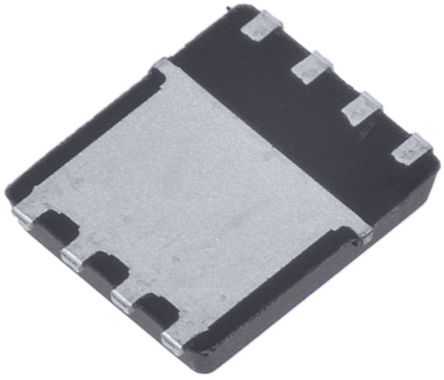

Infineon OptiMOS 3 系列 Si N沟道 MOSFET BSC042NE7NS3GATMA1, 100 A, Vds=75 V, 8引脚 TDSON封装
贸泽:
MOSFET N-Ch 75V 100A TDSON-8 OptiMOS 3
e络盟:
晶体管, MOSFET, N沟道, 100 A, 75 V, 0.0037 ohm, 10 V, 3.1 V
艾睿:
If you need to either amplify or switch between signals in your design, then Infineon Technologies&s; BSC042NE7NS3GATMA1 power MOSFET is for you. Its maximum power dissipation is 2500 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in enhancement mode. This device is made with optimos technology.
安富利:
MOSFET N-Ch 75V 100A TDSON-8 OptiMOS 3
TME:
Transistor: N-MOSFET; unipolar; 75V; 100A; 125W; PG-TDSON-8
Verical:
Trans MOSFET N-CH 75V 19A Automotive 8-Pin TDSON EP T/R
Newark:
# INFINEON BSC042NE7NS3GATMA1 MOSFET Transistor, N Channel, 100 A, 75 V, 0.0037 ohm, 10 V, 3.1 V
Win Source:
MOSFET N-CH 75V 100A TDSON-8
额定功率 125 W
针脚数 8
漏源极电阻 0.0037 Ω
极性 N-Channel
耗散功率 125 W
阈值电压 3.1 V
输入电容 3600 pF
漏源极电压Vds 75 V
连续漏极电流Ids 19A
上升时间 17 ns
输入电容Ciss 3600pF @37.5VVds
下降时间 9 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.5W Ta, 125W Tc
安装方式 Surface Mount
引脚数 8
封装 PG-TDSON-8
长度 5.35 mm
宽度 5.35 mm
高度 1.1 mm
封装 PG-TDSON-8
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Audio, Class D audio amplifiers, Or-ing switches and circuit breakers in 48V systems, Communications & Networking, 电源管理, Power Management, 通信与网络, Motor Drive & Control, 电机驱动与控制, Isolated DC-DC converters telecom and datacom systems, Synchronous rectification for AC-DC SMPS, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BSC042NE7NS3GATMA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
FDMS86300 飞兆/仙童 | 功能相似 | BSC042NE7NS3GATMA1和FDMS86300的区别 |
