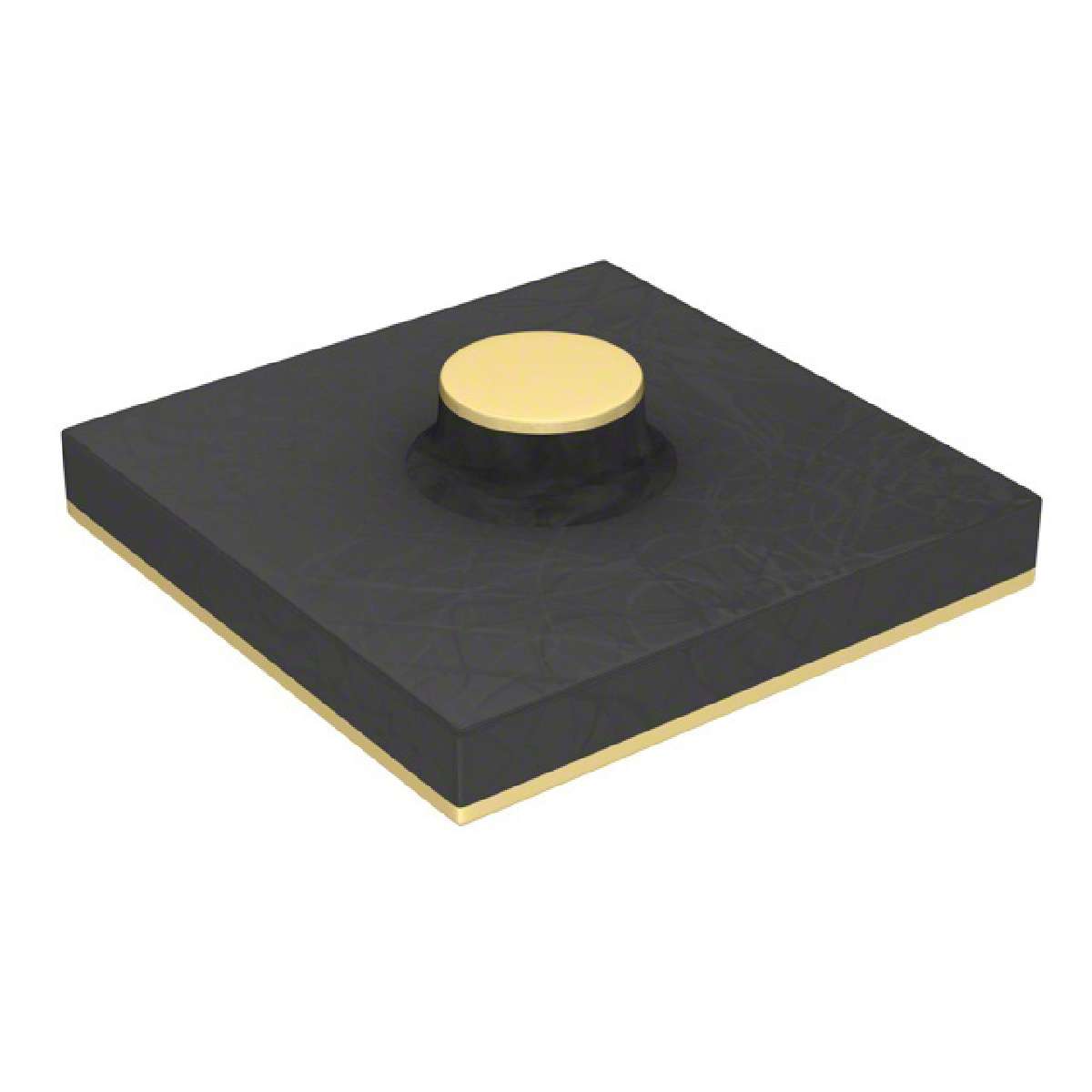

CLA4604-000概述
PIN 二极管 IL .1dB @-10dBm Max CW Pwr 3W
Description
Skyworks CLA series of silicon limiter diodes provides passive receiver protection over a wide range of frequencies from 100 MHz to over 30 GHz. These devices use Skyworks well established silicon technology resulting in high resistivity and tightly controlled base width PIN limiter diodes. Limiter circuits using these devices perform with strong limiting action and low loss.
Features
Established Skyworks limiter diode process
High power, mid-range, and cleanup designs
Low insertion loss: 0.1 dB @ 10 GHz
Power handling to +66 dBm
Tight control of I layer base width
Mesa and planar chip designs
Applications
Limiters
