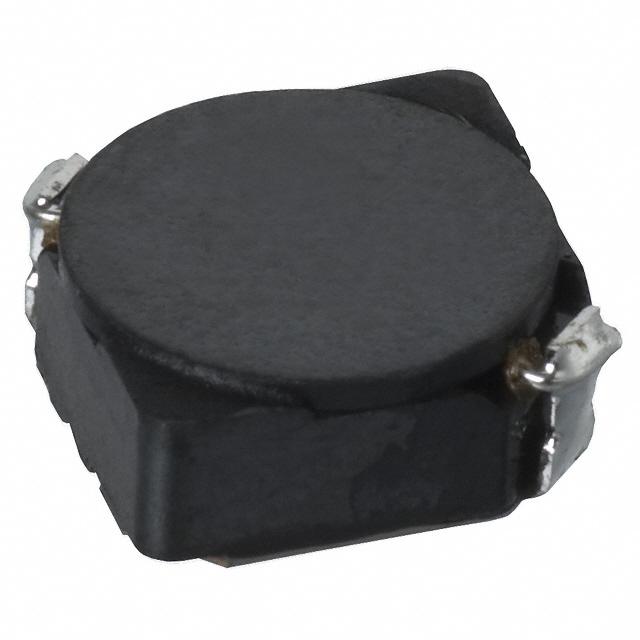

CDRH6D38NP-101NC

CDRH 系列 100 uH 30 % 容差 0.65 A 屏蔽型 表面贴装 功率电感

100 µH 屏蔽 - 器 650 mA 358 毫欧最大 非标准

得捷:
FIXED IND 100UH 650MA 358MOHM SM

立创商城:
100uH ±30% 650mA 265mΩ

艾睿:
This power CDRH6D38NP-101NC surface mount inductor from Sumida Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 100u H. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 358m Ohm. This device is made with drum core technology. This product is 7 mm long, 4 mm tall and 7 mm deep.

安富利:
Ind Power Shielded Wirewound 100uH 30% 100KHz Ferrite 650mA Carrier T/R

Chip1Stop:
Ind Power Shielded Wirewound 100uH 30% 100KHz Ferrite 650mA Carrier T/R

儒卓力:
**CDRH6D38NP 100uH 650mA 30% **

Win Source:
100μH Shielded Inductor 650mA 358 mOhm Max Nonstandard
