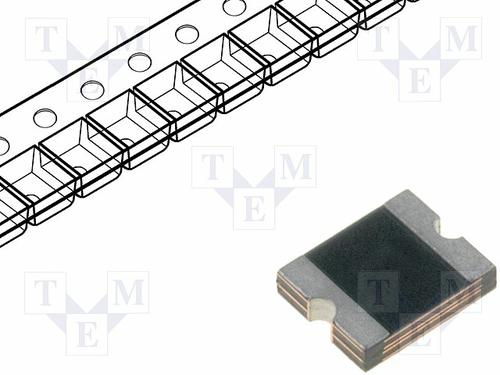

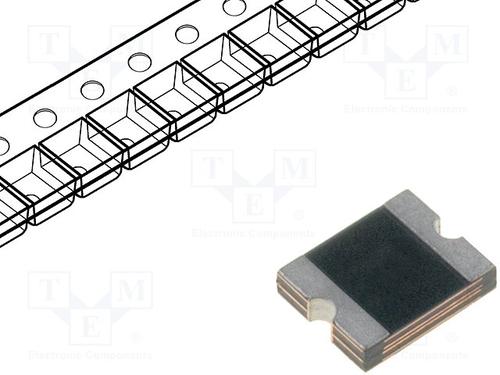

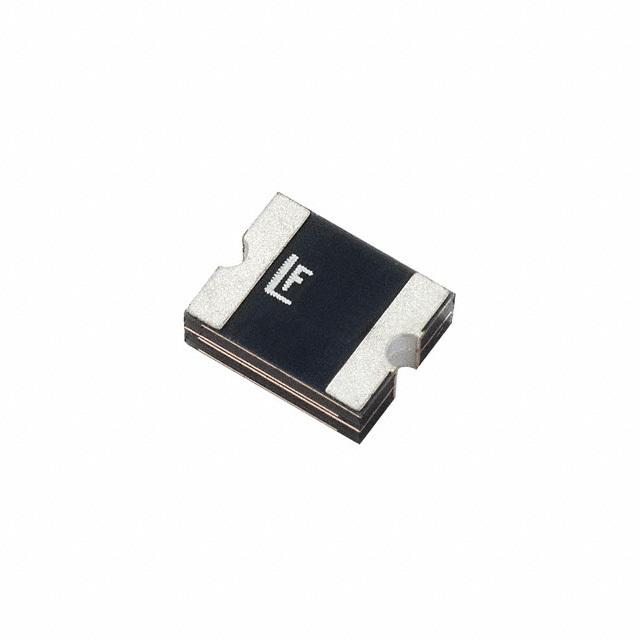

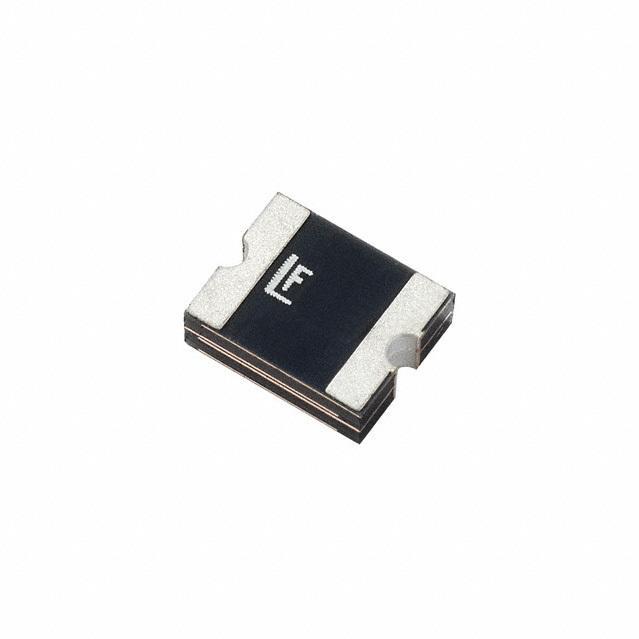

LITTELFUSE 2016L200PR 可复位保险丝, PTC, 6V, SMD 2016, 2A
An automatically resetting fuse like this PTC resettable fuse from is ideal for quickly restoring protected equipment into operation after a fuse burns out. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 5.44Max mm long, 0.75Max mm tall and 4.43Max mm deep.
跳闸时间 3 s
额定电流 2 A
额定功率 1.4 W
耗散功率 1.4 W
电阻 0.1 Ω
保持电流 2 A
跳闸电流 4.2 A
额定电流Max 40 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装 2016 5041 Metric, Concave
长度 4.72 mm
宽度 3.7 mm
高度 0.75 mm
封装 2016 5041 Metric, Concave
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2016L200PR Littelfuse 力特 | 当前型号 | 当前型号 |
MF-SMDF200-2 伯恩斯 | 功能相似 | 2016L200PR和MF-SMDF200-2的区别 |
2016L200 力特 | 功能相似 | 2016L200PR和2016L200的区别 |
