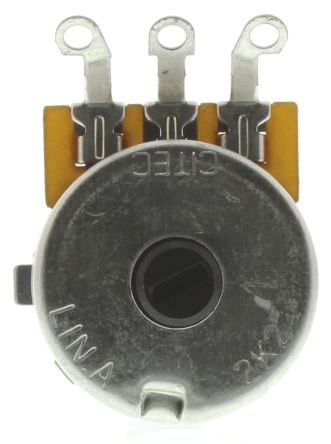

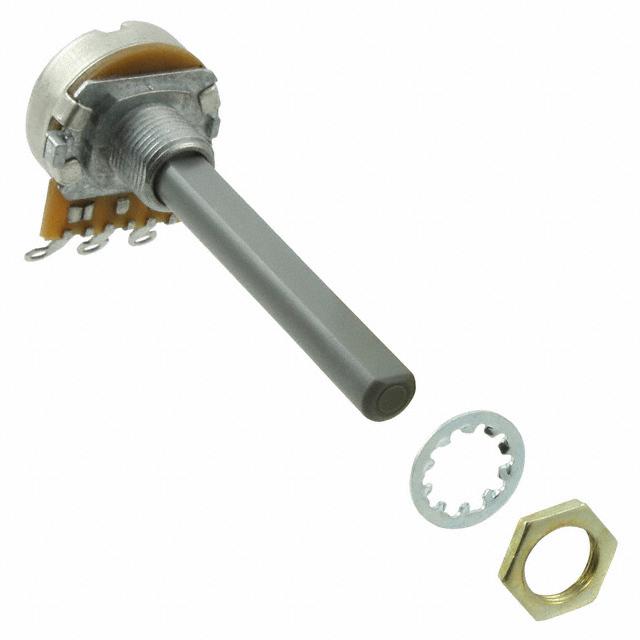

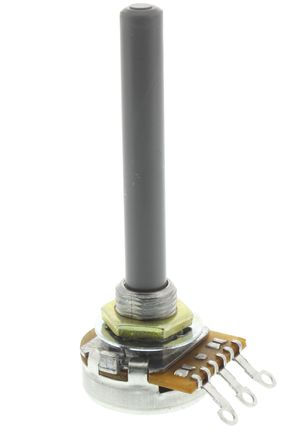

TE CONNECTIVITY / CITEC 23ESA222MMF50NF 旋转电位器, 轴动, 23ESA系列, 2.2 kohm, 线性, 1 转, 400 mW, 面板
The is a single turn Spindle Operated Potentiometer with die cast metal bush and location lug, full special angle shaft style and carbon element. Power rating of 400mW and linear taper.
额定电压DC 500 V
额定电压AC 500 V
容差 ±20 %
额定功率 0.4 W
电阻 2.20 kΩ
阻值偏差 ±20 %
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 500 V
安装方式 Through Hole
封装 25mm Dia.
长度 60.7 mm
宽度 20.4 mm
高度 25.2 mm
封装 25mm Dia.
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 电源管理, Portable Devices, 工业, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
