TEXAS INSTRUMENTS LP3990MF-1.2/NOPB.. 线性稳压器, 固定, 2V至6V输入, 1.2V和0.15A输出, SOT-23-5
LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.2V 150MA SOT23-5
立创商城:
LP3990MF-1.2/NOPB
德州仪器TI:
150-mA, low-IQ, low-dropout voltage regulator with enable & low-VOUT
欧时:
Texas Instruments LP3990MF-1.2/NOPB LDO 稳压器, 1.2 V输出, 150mA最大输出, ±1.5%精确度, 2 → 6 V输入
贸泽:
低压差稳压器 150mA Linear Vtg Reg for Digital Apps
e络盟:
TEXAS INSTRUMENTS LP3990MF-1.2/NOPB 线性稳压器, 固定, 2V至6V输入, 1.2V和0.15A输出, SOT-23-5
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LP3990MF-1.2/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. Using the part will provide the power your application needs by requiring a voltage only of 2 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.2V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 1.2V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.2V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS LP3990MF-1.2/NOPB REGULATOR, LDO, FIXED, 1.2V, SOT-23-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 150mA SOT-23-5
容差 ±4 %
输出接口数 1
输入电压DC 6.00V max
输出电压 1.2 V
输出电流 150 mA
针脚数 5
静态电流 43.0 µA
输出电容类型 Ceramic
跌落电压 120 mV
调节输出数 1
输入电压Max 6 V
输入电压Min 2 V
输出电压Min 1.2 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2V ~ 6V
安装方式 Surface Mount
引脚数 5

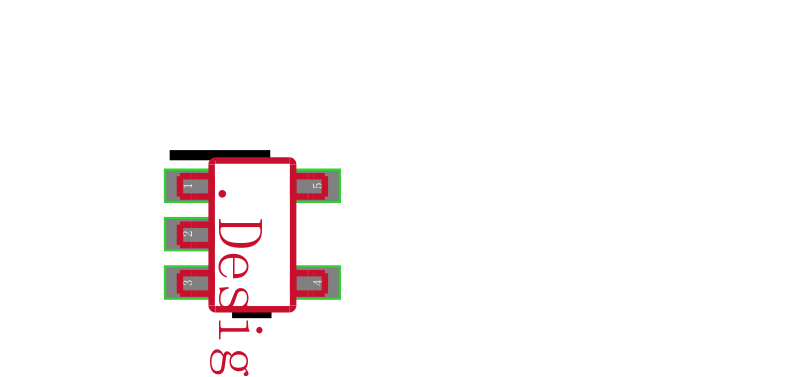

封装 SOT-23-5
长度 2.92 mm
宽度 1.6 mm
高度 1.02 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3990MF-1.2/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3990MFX-1.2/NOPB 德州仪器 | 类似代替 | LP3990MF-1.2/NOPB和LP3990MFX-1.2/NOPB的区别 |
LP3990MF-1.2 德州仪器 | 类似代替 | LP3990MF-1.2/NOPB和LP3990MF-1.2的区别 |
