模拟多路复用器/多路解复用器与注入电流效应控制与LSTTL兼容输入 Analog Multiplexers/ Demultiplexers with Injection Current Effect Control with LSTTL Compatible Inputs
Automotive Customized. This device is pin compatible to standard HC4051 and MC14051B analog mux/demux devices, but feature injection current effect control. This makes them especially suited for usage in automotive applications where voltages in excess of normal logic voltage are common. The injection current effect control allows signals at disabled analog input channels to exceed the supply voltage range without affecting the signal of the enabled analog channel. This eliminates the need for external diode/ resistor networks typically used to keep the analog channel signals within the supply voltage range. The devices utilize low power silicon gate CMOS technology. The Channel Select and Enable inputs are compatible with standard CMOS or LSTTL outputs.
Features
---
|
无卤素状态 Halogen Free
输出接口数 1
供电电流 2 µA
电路数 1
通道数 1
耗散功率 0.45 W
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 450 mW
安装方式 Surface Mount

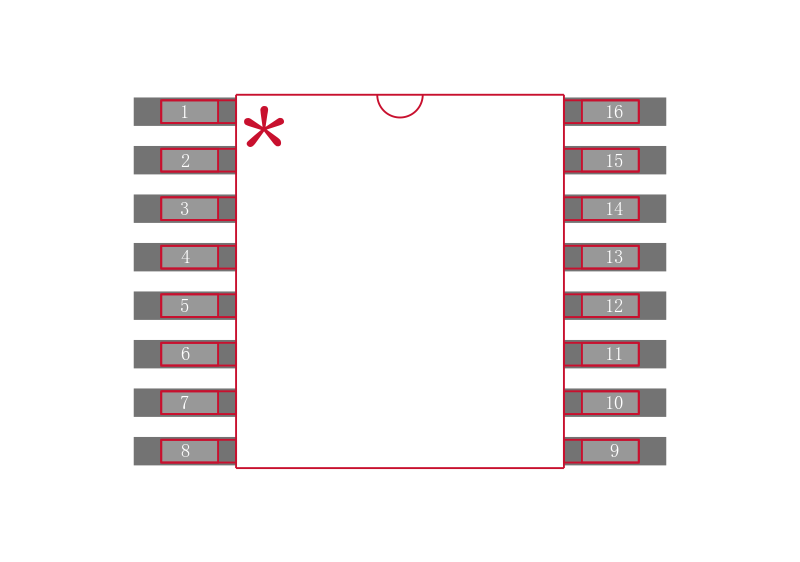

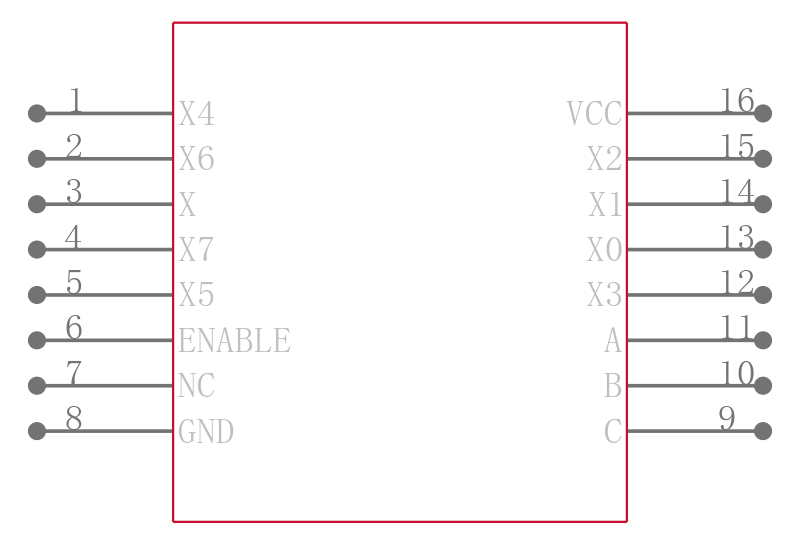

引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 White Goods, Desktop, Industrial, etc;
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
