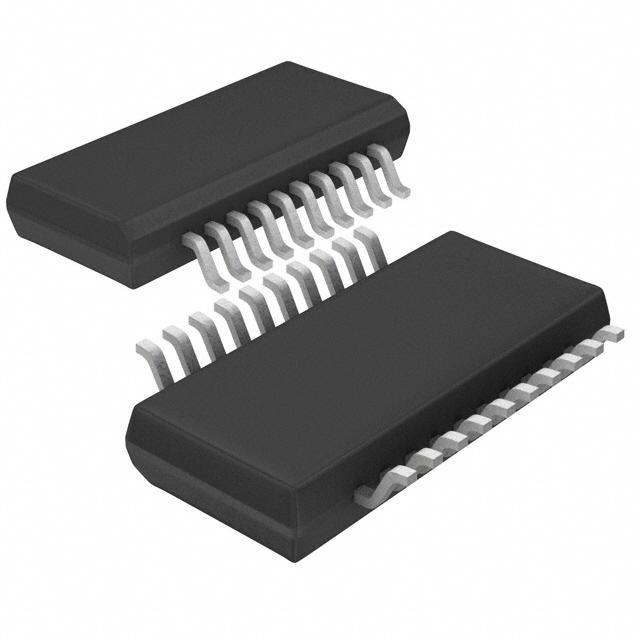

PI3VT3245QE

Bus Switch 1Element CMOS 8IN 20Pin QSOP Tube

Description

’s PI3VT series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading performance.

The PI3VT3245 is a 2.5V or 3.3V 8-bit, 2-port bus switch designed with a low On-Resistance 5Ω. The switches are turned ON or enabled by the Bus Enable BE input signal.

Given a 3.3V supply and an input voltage of 3.3V, the switch translates to an output voltage of 2.5V. Similarly, when operated with a 2.5V supply and given 2.5V inputs, the device translates the outputs to 1.8V.

Features

• Near-Zero propagation delay

• Low On-Resistance switches connect inputs to outputs

• 2.5V to 3.3V Supply voltage operation

• 2.5V or 1.8V switching

• Packaging Pb-free & Green available:

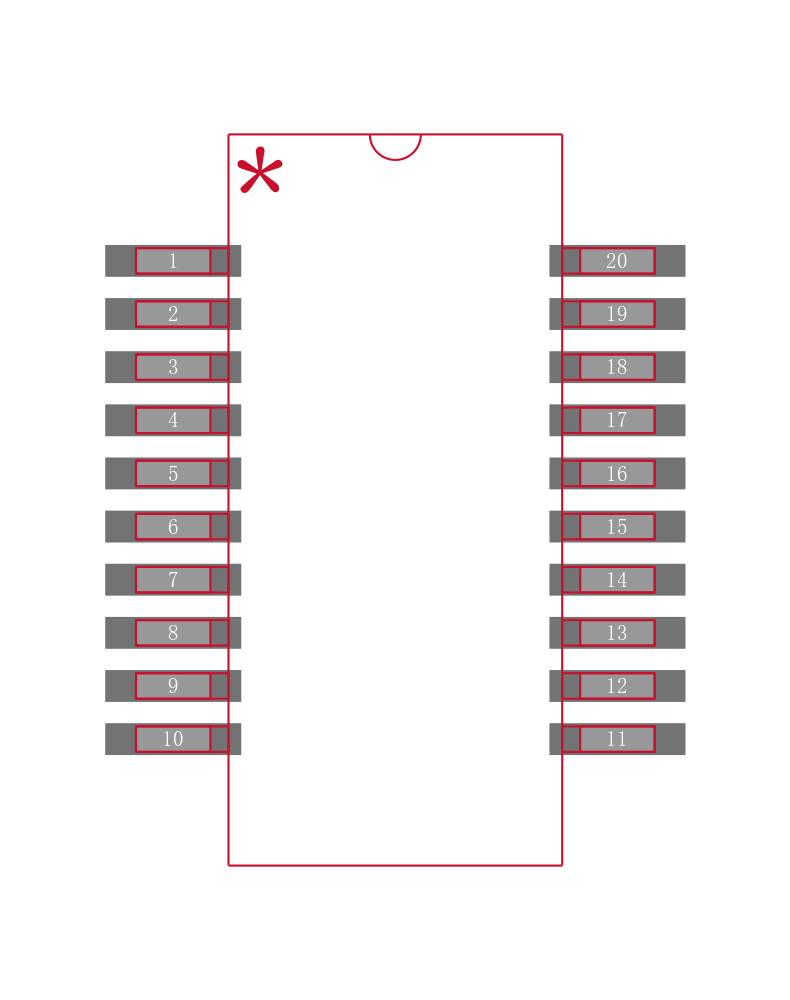

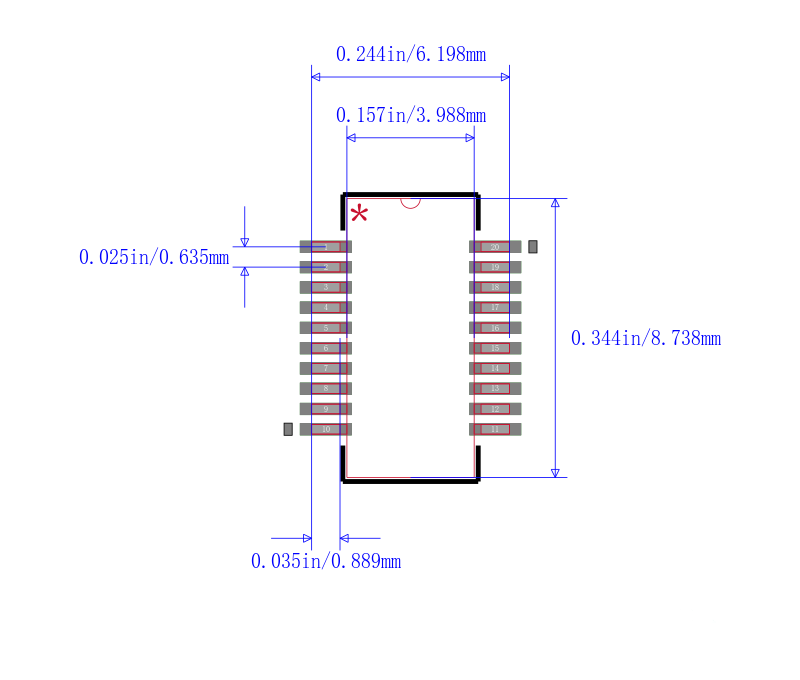

   – 20-pin, 150-mil wide plastic QSOP Q

   – 20-pin, 173-mil wide plastic TSSOP L

Applications

• 3.3V to 2.5V level shifting voltage translation

• 2.5V to 1.8V level shifting voltage translation
