SRR0906-332YL

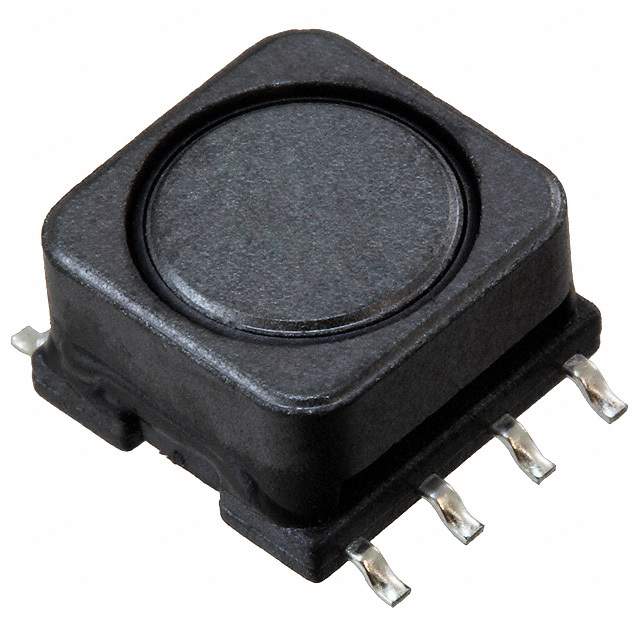

BOURNS  SRR0906-332YL  表面贴装功率电感器, SRR0906系列, 3.3 mH, ± 15%, 屏蔽, 11 ohm, 120 mA

屏蔽 绕线 器 11 欧姆最大 8-SMD，鸥翼

得捷:
FIXED IND 3.3MH 120MA 11 OHM SMD

立创商城:
3.3mH ±15% 120mA 11Ω

e络盟:
功率电感SMD, 3.3 mH, 120 mA, 屏蔽, 150 mA, SRR0906系列, 10mm x 9.5mm x 6mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR0906-332YL surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.3M Hz. It has an inductance of 3.3m H. This product is 10.5 mm long, 6.3 mm tall and 13 mm deep. It has a tolerance of 15%. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 11 Ohm.

安富利:
Ind Power Shielded Wirewound 3.3mH 15% 1KHz 100Q-Factor Ferrite 120mA T/R

Verical:
Inductor Power Shielded Wirewound 3300uH 15% 1KHz 100Q-Factor Ferrite 0.12A 11Ohm DCR T/R

Newark:
# BOURNS  SRR0906-332YL  Surface Mount Power Inductor, SRR0906 Series, 3.3 mH, 15%, Shielded, 11 ohm, 120 mA

Online Components:
Inductor Power Shielded Wirewound 3.3mH 15% 1KHz 100Q-Factor Ferrite 120mA 11Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3mH 15% 1KHz 100Q-Factor Ferrite 120mA 11Ohm DCR T/R
