多台RS - 232驱动器和接收 MULTIPLE RS-232 DRIVERS AND RECEIVERS
DESCRIPON/ORDERING INFORMATION
The SN75185 combines three drivers and five receivers from the TI SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively. The pinout matches the flow-through design of the SN75C185 to decrease the part count, reduce the board space required, and allow easy interconnection of the UART and serial-port connector of IBM™ PC/AT™ and compatibles. The bipolar circuits and processing of the SN75185 provide a rugged low-cost solution for this function at the expense of quiescent power and external passive components relative to the SN75C185.
FEATURES
• Single Chip With Easy Interface Between UART and Serial-Port Connector of IBM™ PC/AT™ and Compatibles
• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
• Supports Data Rates up to 120 kbit/s
• ESD Protection Meets or Exceeds 10 kV on RS-232 Pins and 3.5 kV on All Other Pins Human-Body Model

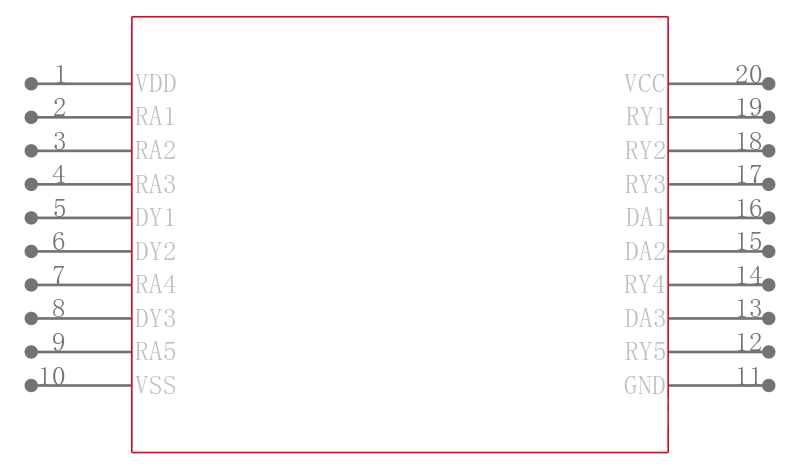

• Pin-to-Pin Compatible With the SN75C185
