TSW-105-14-S-D

Conn Unshrouded Header HDR 10POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 10 position 0.100" 2.54mm

欧时:
2.54mm TSW series PCB pin header, 10P

得捷:
CONN HEADER VERT 10POS 2.54MM

艾睿:

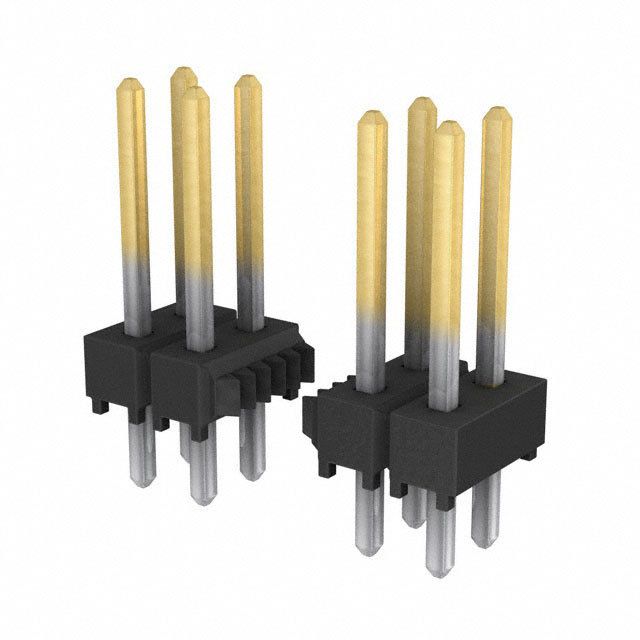

Easily mount this unshrouded TSW-105-14-S-D header connector from Samtec onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. This product is 12.7 mm long, 10.67 mm tall and 5.08 mm deep. It uses the solder termination method. TSW-105-14-S-D is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Bag

Newark:
# SAMTEC  TSW-105-14-S-D  .025 Sq. Terminal Strips
