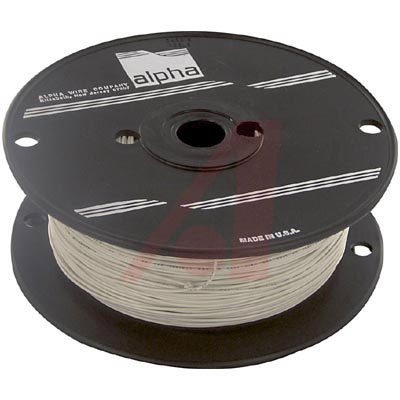

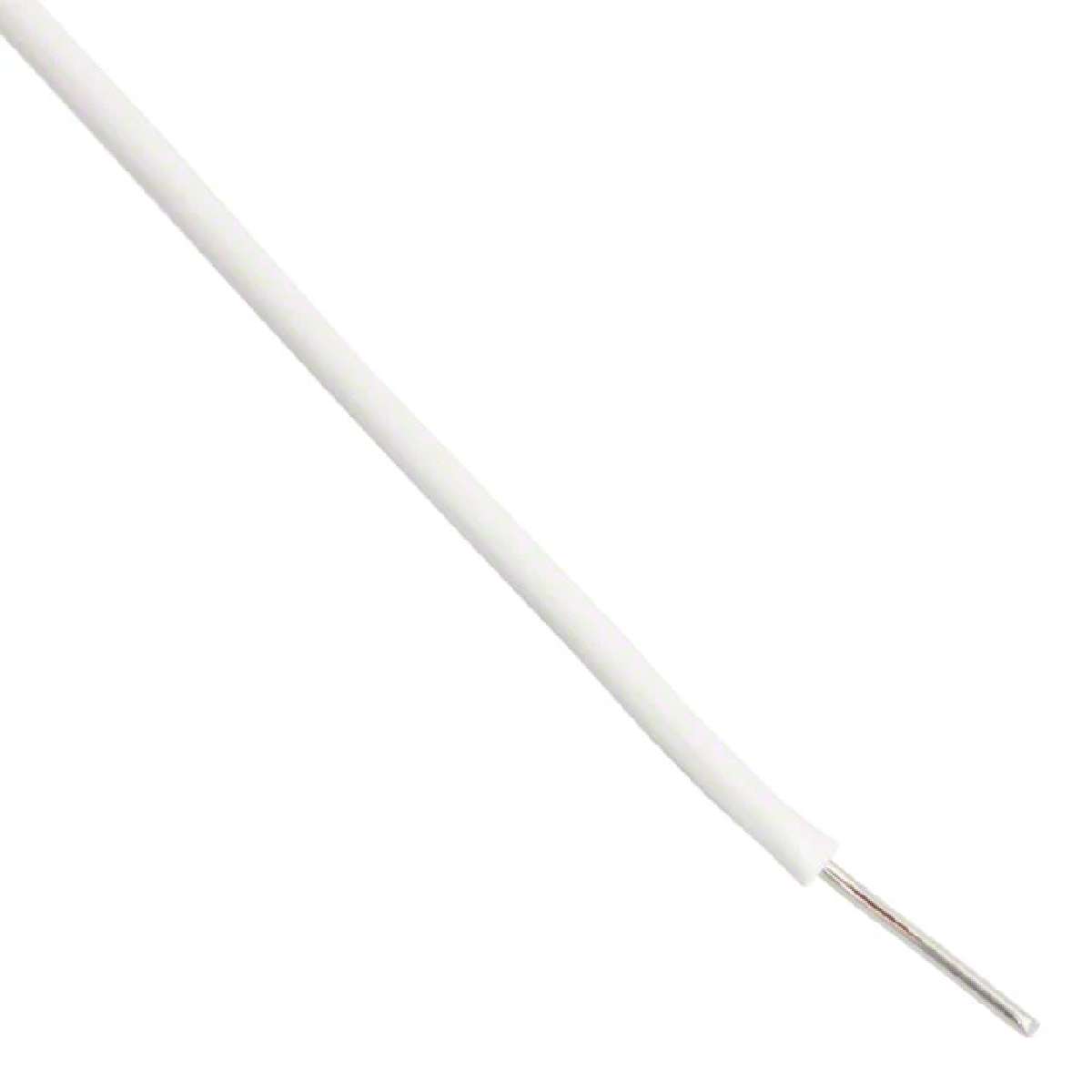

3050/1 WH001

电线, 实心, 连接线, PVC, 白色, 24 AWG, 0.205mm², 1000英尺, 304.8m

* CPR: 尚未评估

.

Solid 24 AWG tinned copper conductor

.

PVC jacket insulation

.

Flame resistance VW-1, FT1

.

Ability to withstand wear and abrasion

.

Voltage rating 300V

.

-40 to +105°C Temperature range

.

3.2 lbs Maximum pull tension

.

0.07µH/ft Nominal inductance

.

27R/1000 ft at 20°C Nominal conductor DC resistance

.

UL AWM Style 1007, 1569 UL file E163869; CSA TR-64
