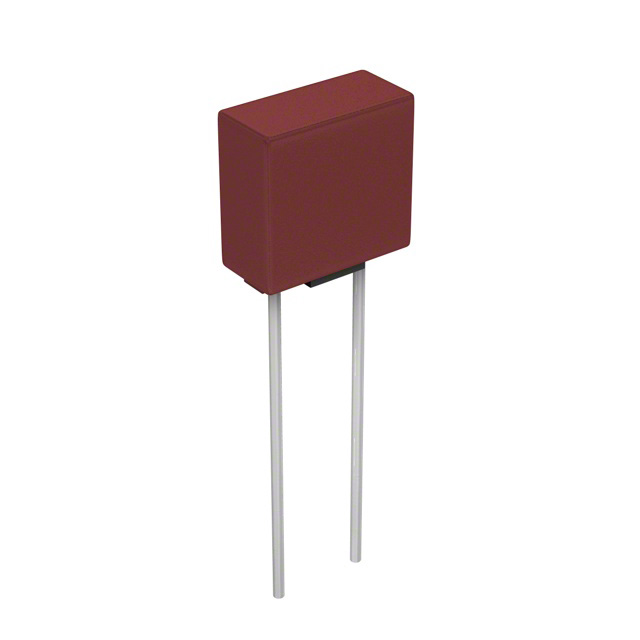

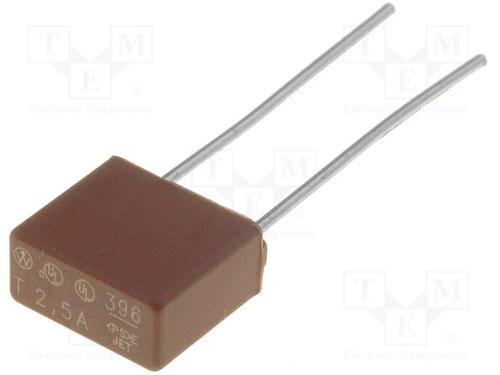

396系列TE5 ，延时保险丝 396 Series, TE5, Time-Lag Fuse
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. Its maximum power dissipation is 300 W. This device has a current rating of 2.5. This device has a maximum power dissipation of 300 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 39612500000 fuse has a radial termination style. This product is 8.5 mm long, 8Max mm tall and 4Max mm deep. The maximum AC voltage rating is 125 VAC.
额定电压DC 125 V
额定电压AC 125 V
额定电流 2.5 A
易燃性等级 UL 94 V-0
耗散功率 300 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 W
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
长度 8.5 mm
宽度 4 mm
高度 8 mm
脚长度 18.8 mm
封装 Radial, Box
颜色 Brown
工作温度 40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Box TB
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
