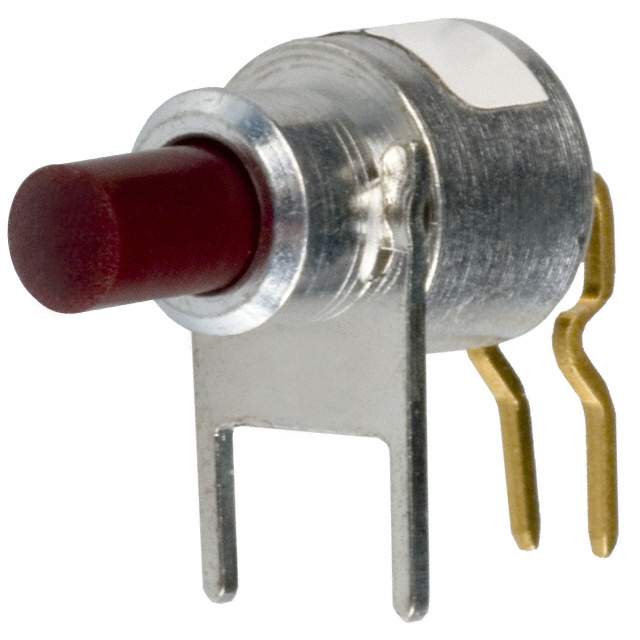

39 系列 瞬时 单刀单掷 红色 直角 通孔 按键开关
Never worry about turning off components or cutting off certain sections of a circuit with this push button switch from . This device has a maximum current rating of 0.15 A @ 28VDC. It has a SPST configuration. This push switch has an operating temperature range of -40 °C to 85 °C. The 39-501 RED push switch has a PC pin termination style. The maximum DC voltage rating is 28 VDC. This product is 6.35 mm long, 7.62 mm tall and 15.24 mm deep.
触点电镀 Gold
额定电压DC 28 V
额定电流 150mA DC
绝缘电阻 1000 MΩ
方向 Right Angle
触点类型 SPST
触点额定电流 150 mA
额定电流Max 0.15A @28VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max 25 mΩ
安装方式 Through Hole
长度 6.35 mm
宽度 15.24 mm
高度 7.62 mm
直径 6.35 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
