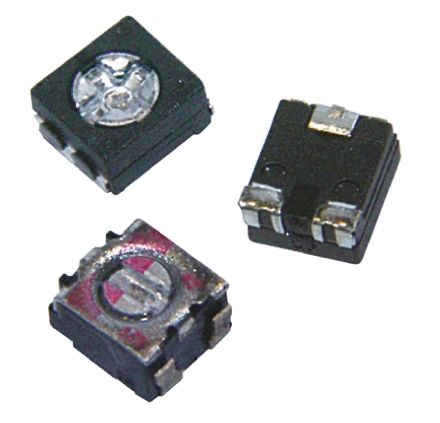

150mW 3mm Square - 3203 SeriesTyco 3203 Series 150mW Top Adjust 3mm square SMD cermet trimmer potentiometers with a cross screwdriver slot. The manual adjust sister to the 3213 series, the 3203 series are a low profile trimmer potentiometer solution ideal for new generation hand held equipments where mixed technology and double sided component placement are unavoidable. The 3203 trimmer is sealed for IR, vapour phase and full immersion wave soldering together with the solvent board washing process. Height above the board - 2mm Cermet Technology Suitable for dip and wave solder processes plus solvent washing Delta Terminals Prevent Solder Bridging Designed for Manual Adjust ### 单转 - 表面安装 - 金属陶瓷
150mW 3mm 方形 - 3203 系列
Tyco 3203 系列 150mW 顶部调整 3mm 方形 SMD 金属陶瓷微调电容器电位计，带一个十字螺丝刀槽。3203 系列是 3213 系列的手动调整同类产品，是一种薄型微调电容器电位计解决方案，特别适用于不可避免需要混合技术和双面放置元件的新一代手持式设备。3203 微调是经过密封，适用于红外、汽相和全浸入式波峰焊，以及溶剂板清洗工艺。
距离板的高度 - 2mm
金属陶瓷技术
适用于浸焊和波峰焊，以及溶剂清洗
三角形接线端子可防止焊点桥接
专为手动调整而设计
得捷:
TRIMMER 2K OHM 0.05W J LEAD TOP
欧时:
TE Connectivity 3203 系列 表面贴装 微调电阻器 3203X202P, 带安装片接端, 2kΩ ±20%, 0.05W, ±100ppm/°C
艾睿:
Res Cermet Trimmer 2K Ohm 25% 0.05W1/20W 1Elec/1MechTurns 1.9mm 3.4 X 3.5 X 2mm J-Hook SMD Tape
Allied Electronics:
SMD Cermet Trimmer Restr w/ Tab Term, 2kOhm +/-20%.05W +/-100ppm/C TopAdjust
Verical:
Res Cermet Trimmer 2K Ohm 25% 0.05W1/20W 1Elec/1MechTurns 1.9mm 3.4 X 3.5 X 2mm J-Hook SMD Tape
