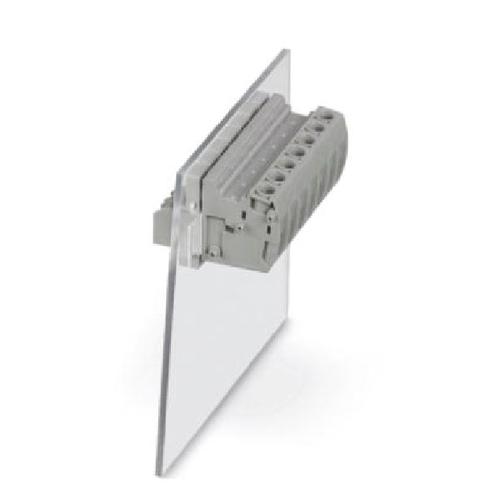

3056909图片1
3056909图片2
3056909图片3
3056909图片4
3056909图片5
3056909图片6
3056909概述

Phoenix Contact 2 路 母 灰色 3056909, 螺钉端接

Conn Feed-Through Terminal Block 2 POS Screw Panel Mount 32A


得捷:
TERM BLK SCREW CLAMP 1POS GRAY


欧时:
Panel Feed Through Terminal Plug 3056909


贸泽:
Fixed Terminal Blocks UW 4-POT-SCM/S


MASTER:
Panel feed-through terminal block - connection method: Screw connection with tension sleeve - Slip-on connection - number of positions: 1 - load current: 18 A - cross section: 0.2 mm² - 6 mm² - connection direction of the conductor to plug-in direction: 0


Online Components:
Conn Feed-Through Terminal Block 2 POS Screw Panel Mount 32A


Electro Sonic:
Panel feed-through terminal block - connection method: Screw connection with tension sleeve - Slip-on connection - number of positions: 1 ...


3056909中文资料参数规格
技术参数

触点数 2

线规 10AWG ~ 24AWG

额定电流 32 A

排数 1

电路数 1

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 32 A

额定电压Max 800 V

额定电压 800 V

封装参数

安装方式 Screw, Flange

外形尺寸

宽度 8.1 mm

物理参数

外壳颜色 Gray

颜色 Gray

材质 Polyamide PA

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买3056909
型号: 3056909
描述:Phoenix Contact 2 路 母 灰色 3056909, 螺钉端接
