399-93-164-10-003000

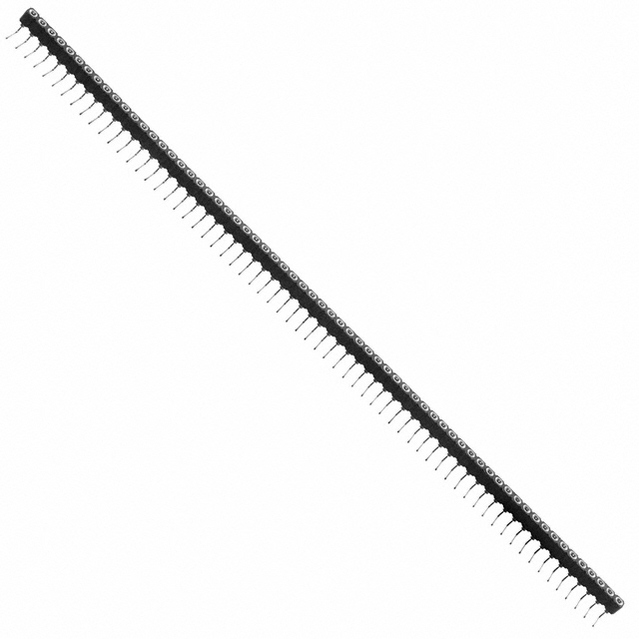

Conn Socket Strip SKT 64POS 2.54mm Solder RA Thru-Hole

64 位置 插座 0.100"（2.54mm） 通孔，直角 镀金

得捷:
CONN RCPT 64POS 0.1 GOLD PCB R/A

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 399-93-164-10-003000 header connector from Mill-Max Mfg. Corp.. This SKT connector&s;s 64 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A. It uses the solder termination method. This product is 162.56 mm long, 2.54 mm tall and 5.58 mm deep. This connector has an operating temperature of -55 to 125 °C. 399-93-164-10-003000 is housed in black polychlorinated terphenyl.

Allied Electronics:
Socket .100 Grid; Right Angle Socket .018 dia leads

Chip1Stop:
Conn Socket Strip SKT 64 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Socket Strip SKT 64 POS 2.54mm Solder RA Thru-Hole
