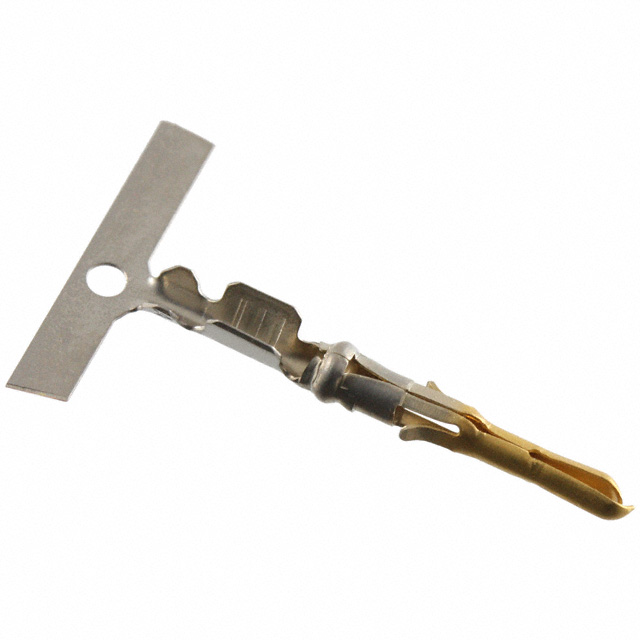

AMP FROM TE CONNECTIVITY 350968-2 压接针脚触点
A solid mechanical connection is ideal for any cable connection, this connector contact manufactured from will get the job don. It has a straight body orientation. This device has a maximum current rating of 9 A. This has a Connector Power connector. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It uses the crimp termination method. This product is 20.07 mm long, 2.31 mm tall and 2.29 mm deep. Its wire is 24-26 AWG.
极性 Male
线规 24AWG ~ 26AWG
触点电镀 Gold
额定电流 9.00 A
额定电流Max 9 A
额定电压Max 250 VAC
安装方式 Solder
封装 -
高度 2.31 mm
封装 -
触点材质 Phosphor Bronze
材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
