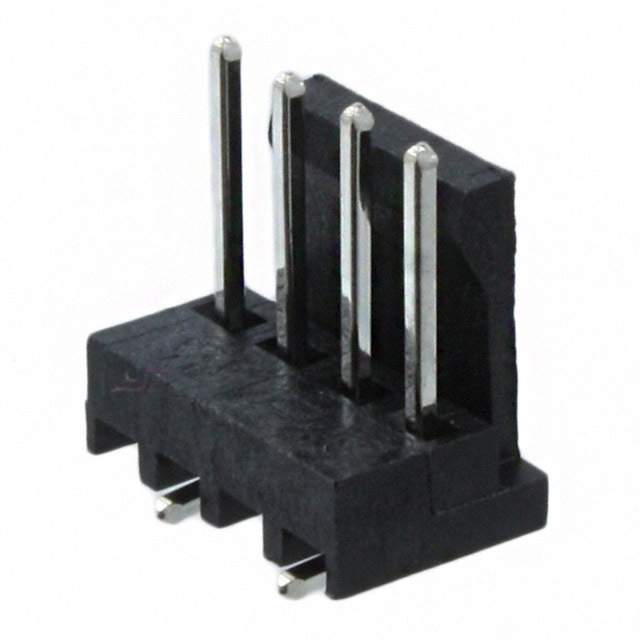

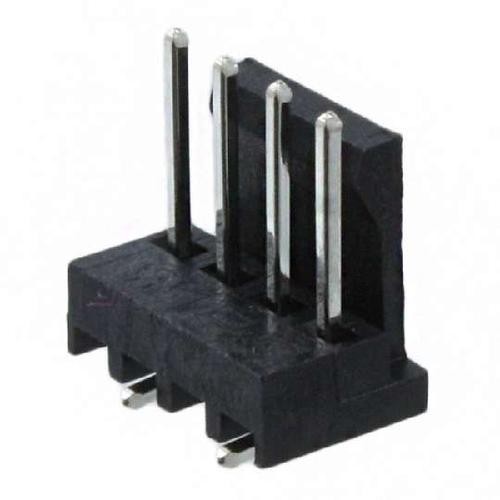

MTA-100 4 位置 表面贴装 单排 直 线对板 插头
4P MTA100 HDR ASSY,SM,FL,LF
Product Highlights
Connector
4 Positions
Connector Type = Header - Pin
MTA-100 Product Line
Wire-to-Board Application
得捷:
CONN HEADER SMD 4POS 2.54MM
立创商城:
3-647166-4
e络盟:
线至板连接器, 2.54 mm, 4 触点, 针座, MTA-100 Series, 表面安装 , 1 排
艾睿:
Use this wire to board 3-647166-4 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. 3-647166-4 is housed in black nylon 4/6. This product is 10.16 mm long, 10.54 mm tall and 8.08 mm deep.
安富利:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD
Chip1Stop:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Bag/Box
Verical:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Bag/Box
Newark:
# AMP - TE CONNECTIVITY 3-647166-4 4P MTA100 HDR ASSY,SM,FL,LF New
MASTER:
MTA-100 HEADER ASSEMBLY, SURFACE MOUNT,
Online Components:
4P MTA100 HDR ASSY,SM,FL,LF
Electro Sonic:
4P MTA100 HDR ASSY,SM,FL,LF
触点数 4
触点电镀 Tin
额定电压AC 250 V
额定电流 5 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 4
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
安装方式 Surface Mount
封装 -
高度 10.54 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
材质 Nylon
工作温度 -55℃ ~ 105℃
外壳材质 Nylon 4/6
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
