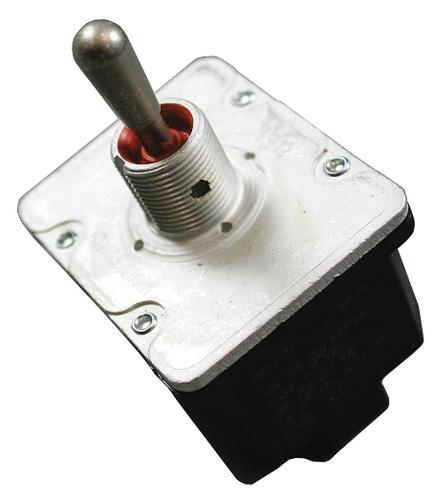

HONEYWELL 4NT1-1 拨动开关
The is a 4-pole double-throw 4PDT Toggle Switch with a standard lever and screw terminals. This MICRO SWITCH™ NT series toggle switch meets the need for a rugged, cost-effective toggle switch. Quality construction includes a seal between the toggle lever and bushing and between the cover and case. This switch can be used where panels are subject to splashes, hosedowns or outdoor environments. The "Easy-Start" threaded bushing enables quick alignment of mounting nut to decrease the chance of cross threading. The panel stand-off with O-ring feature available on some listings, eliminates the need for behind-the-panel hardware, provides uniform panel height and provides a panel to cover seal. It supports 15/32-inch bushing mount and capable of withstanding a temperature of 160 degrees F continuously at full rated load.
接触器类型 Standard
额定电流 15 A
方向 Vertical
触点类型 4PDT
针脚数 3
额定电流Max 20 A
工作温度Max 71 ℃
工作温度Min -40 ℃
额定电压 115 VAC
额定电压DC Max 250 V
额定电压AC Max 230 V
安装方式 Panel, Screw Terminals
长度 33.4 mm
高度 63.6 mm
触点材质 Silver Cadmium Oxide
工作温度 -40℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automotive, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509065
