40-526-10

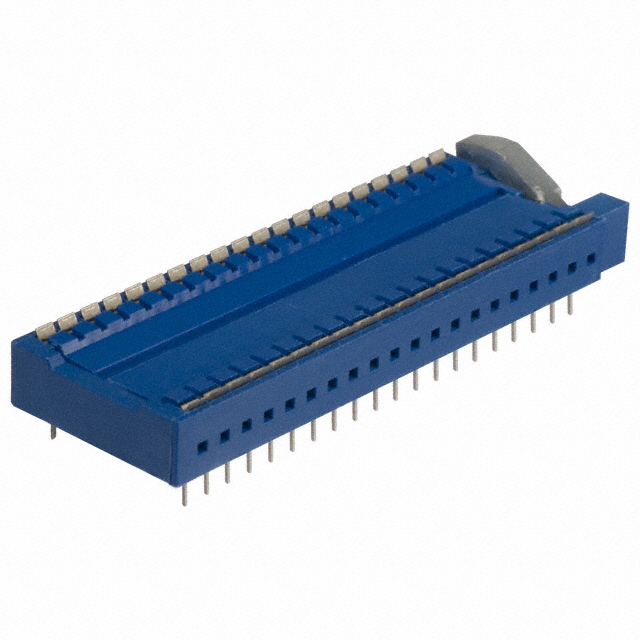

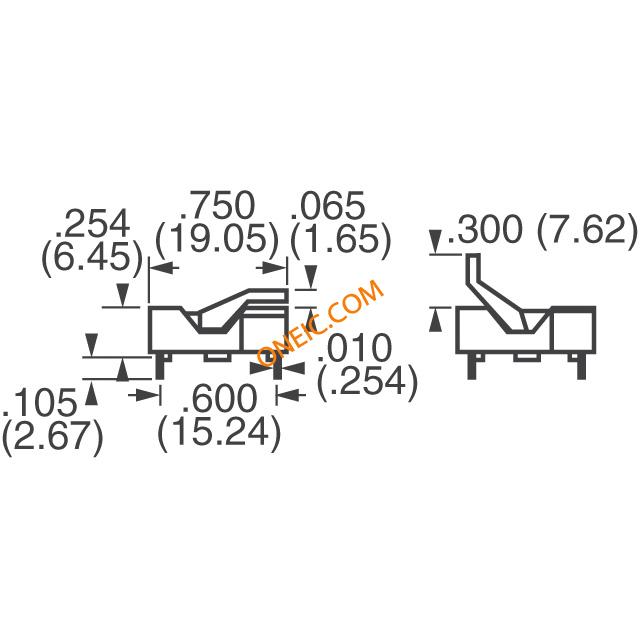

ARIES  40-526-10  芯片和元件插座, 526系列, DIP, 40 触点, 2.54 mm, 15.24 mm, 镀锡触芯

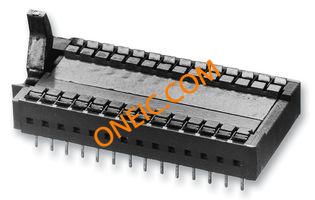

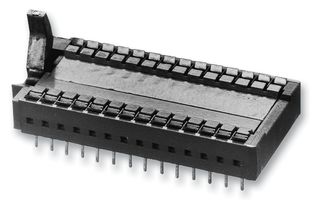

The 526 series LO-PRO® file zero insertion force Socket with a metal cam provides strong, smooth action as it moves to a positive stop, compressing the double-sided contacts, ensuring a gas-tight seal. The series has choice of 24, 28 or 40-pin count device to be inserted without bending or otherwise damaging the legs, since no force is required to either insert or remove the component from the socket. It is made of glass-filled 4/6 nylon body with spring tempered beryllium copper alloy 172 contacts.

.

Test point openings provided to reach all pins

.

Lightweight, strong and rigid cast zinc alloy cam

.

2A Contact current rating

.

10mR Maximum contact resistance
