Res Thick Film NET 680Ω 2% 0.75W3/4W ±100ppm/℃ ISOL Molded 6Pin SIP Pin Thru-Hole
680 欧姆 ±2% 300mW 每元件功率 隔离 3 器网络，阵列 ±100ppm/°C 6-SIP
艾睿:

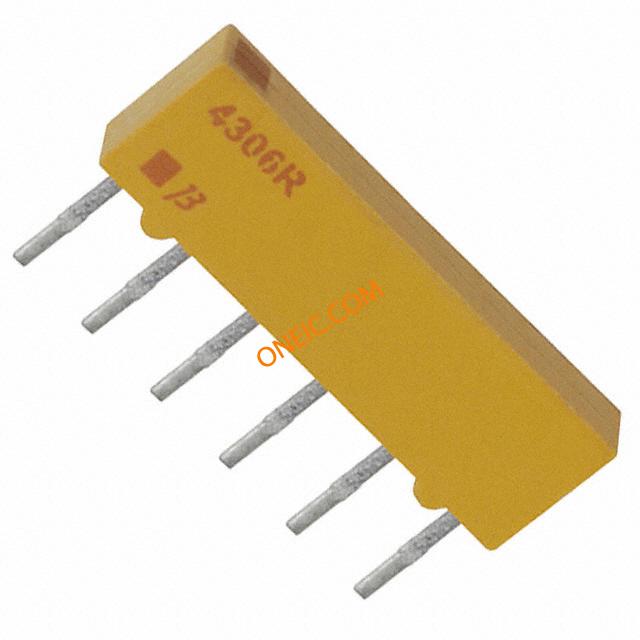

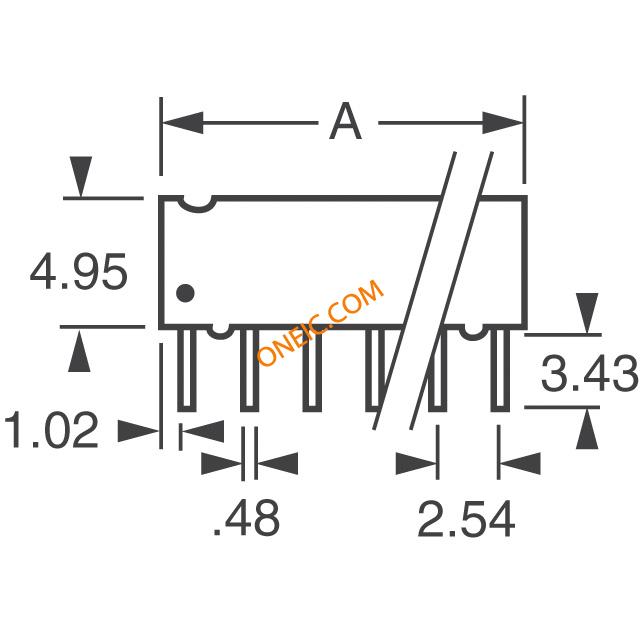

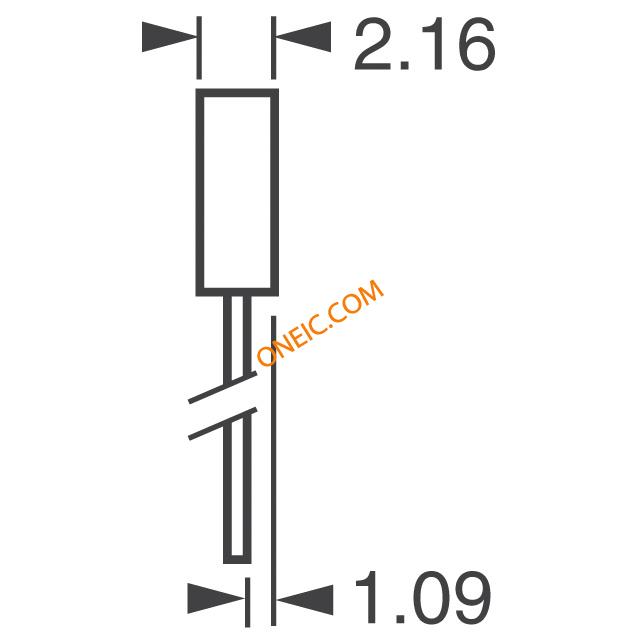

Use this 4306R-102-681LF resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. This dependable part has a power rating of 0.75 3/4 W and a power rating per resistor of 0.3 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 3 resistors have a value of 680 Ohm. It has 6 terminals. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This product is 14.83 mm long, 4.95 mm tall and 2.16 mm deep. This device utilizes thick film technology. The 4306R-102-681LF part has a pin termination style.
Allied Electronics:
4306R-102-681LF
安富利:
Res Thick Film NET 680 Ohm 2% 3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
Chip1Stop:
Res Thick Film NET 680 Ohm 2% 0.75W3/4W ±100ppm/℃ ISOL Molded 6-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 680 Ohm 2% 0.75W3/4W ±100ppm/°C ISOL Molded 6-Pin SIP Pin Thru-Hole
