Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1W, 100000Ω, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 7808, SIP-8
100k 欧姆 ±2% 200mW 每元件功率 总线式 7 器网络，阵列 ±100ppm/°C 8-SIP
得捷:
RES ARRAY 7 RES 100K OHM 8SIP
立创商城:
100kΩ ±2%
艾睿:

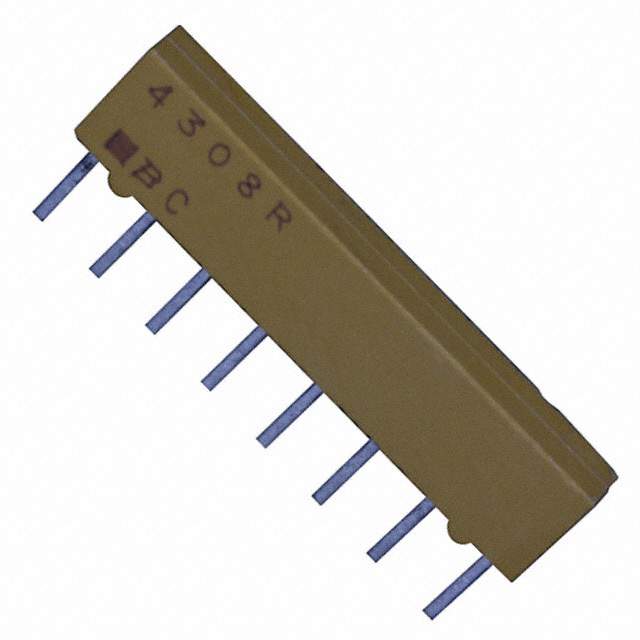

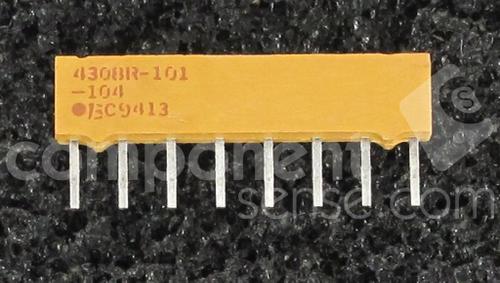

Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their 4308R-101-104 resistor array, essentially an IC chip with multiple resistors built in. This product&s;s 7 resistors have a value of 100K Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. It has 8 terminals. The 4308R-101-104 part has a pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 19.92 mm long, 4.95 mm tall and 2.16 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This device is made with thick film technology.
Chip1Stop:
Res Thick Film NET 100K Ohm 2% 1W 100ppm/ C BUS Molded 8-Pin SIP Pin Thru-Hole
Electro Sonic:
Res Thick Film NET 100K Ohm 2% 1W ±100ppm/°C BUS Molded 8-Pin SIP Pin Thru-Hole
Win Source:
RES ARRAY 7 RES 100K OHM 8SIP / 100k Ohm ±2% 200mW Power Per Element Bussed 7 Resistor Network/Array ±100ppm/°C 8-SIP
